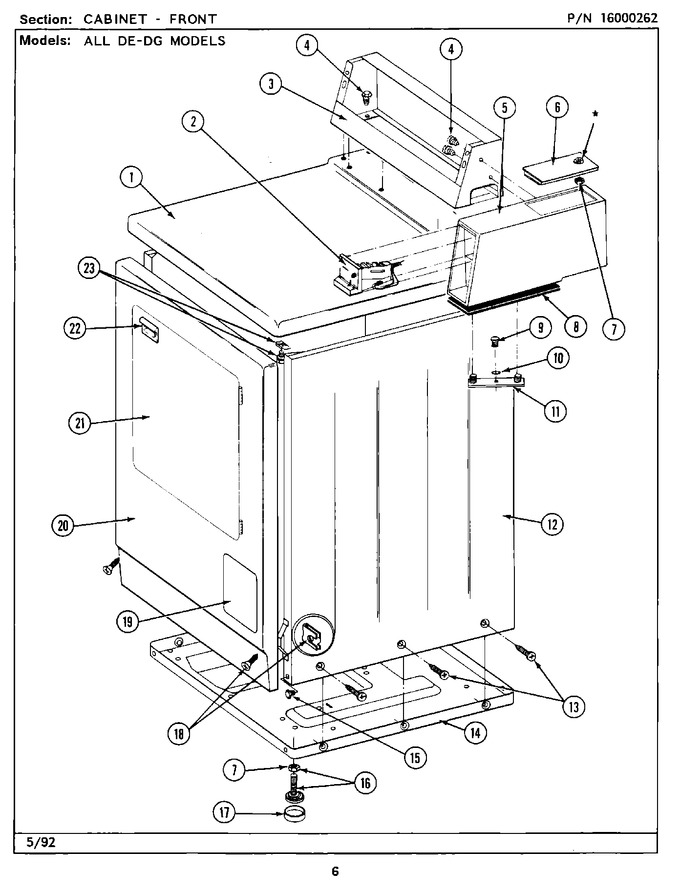

03 - Cabinet-front


04 - Cabinet-rear


05 - Door


06 - Tumbler


07 - Motor Drive


08 - Motor Drive-thermostats


09 - Gas Valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	307105		Top Cover Assy. (wht)	A0	Appelez-nous	-
001	NLA		(alm)	A0	Appelez-nous	-
002	NLA		Coin Drop Assy.	A0	Appelez-nous	-
003	NLA		Control Cover (wht)	A0	Appelez-nous	-
004	WP90767		Screw   (Replaces: 212276)	A0		Immediately	$ 7.04
005	207940		Case, Coin Meter (wht)	A0	Appelez-nous	-
005	207940L		(alm)	A0	Appelez-nous	-
005	NLA		(hvst Wheat)	A0	Appelez-nous	-
006	203188		Door, Access (wht)	A0	Appelez-nous	-
006	203188M		(hvst Wheat)	A0	Appelez-nous	-
006	203188L		(alm)	A0	Appelez-nous	-
007	WP62739		Nut   (Replaces: Y052740)	A0			$ 6.85
008	214660		Gasket	A0	Appelez-nous	-
009	WP90767		Screw, Mtg. Strap   (Replaces: 211294)	A0		Immediately	$ 7.04
010	910309		Washer	A0	Appelez-nous	-
011	NLA		Mtg. Strap----na	A0	Appelez-nous	-
012	NLA		Cabinet (wht)	A0	Appelez-nous	-
013	213007		Screw	A0			$ 10.99
014	Y303361		Base Assy.	A0	Appelez-nous	-
015	Y310632		Screw, Cabinet	A0	Appelez-nous	-
016	WP233550		Adjustable Leg & Nut   (Replaces: Y305086)	A0			$ 7.16
017	Y314137		Foot, Rubber	A0			$ 14.08
018	204439		Screw & Fastener Assy.	A0			$ 8.80
019	NLA		Door, Access (wht)	A0	Appelez-nous	-
020	307998L		(alm)	A0	Appelez-nous	-
020	NLA		Front Panel Assy. (wht)	A0	Appelez-nous	-
021	308061		Door Assy. Complete (wht)	A0	Appelez-nous	-
021	NLA		(alm)	A0	Appelez-nous	-
022	314946		Handle (wht)	A0	Appelez-nous	-
022	314972		(alm)	A0	Appelez-nous	-
022	NLA		(hvst Wheat)	A0	Appelez-nous	-
023	204445		Screw & Fastener Asy.	A0	Appelez-nous	-
