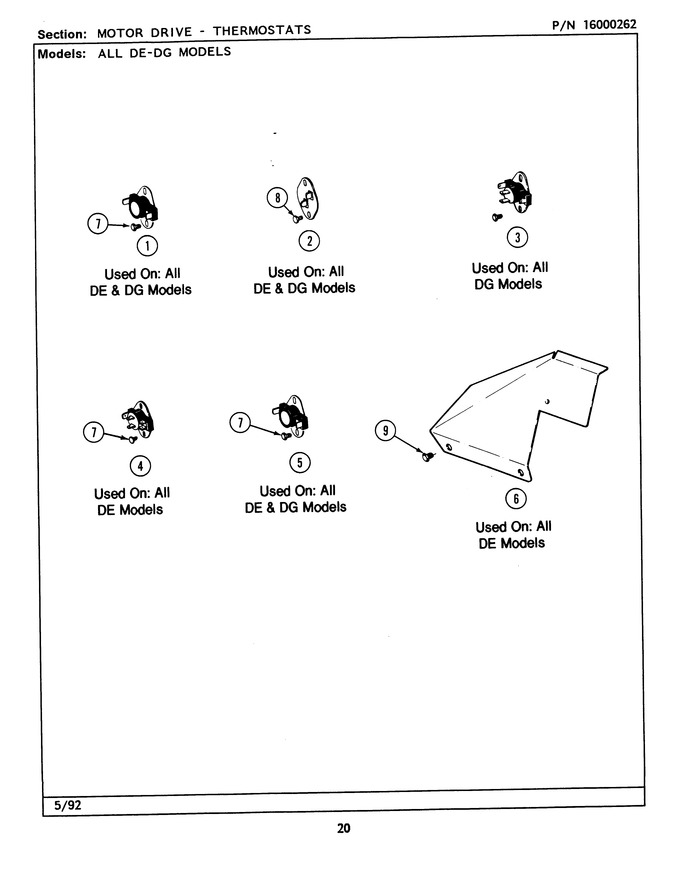

SELECT A DIAGRAM

01 - Control Panel


02 - Control Center


03 - Cabinet-front


04 - Cabinet-rear


05 - Door


06 - Tumbler


07 - Motor Drive


08 - Motor Drive-thermostats


09 - Gas Valve


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP694674		Thermostat, Cycling (140 Deg.)   (Replaces: 303392)	A0		Immediately	$ 45.46
002	WP306604		Cut-off, Thermal   (Replaces: 306604)	A0		Immediately	$ 37.77
003	306966		Thermostat, Multi-temp	A0			$ 55.13
004	W10124350		Not Required Part Or See Note	A0	Appelez-nous	-
005	308211		Thermostat, Limit	A0	Appelez-nous	-
006	W10124350		Not Required Part Or See Note	A0	Appelez-nous	-
007	WP90767		Screw, Thermostat   (Replaces: 211294)	A0		Immediately	$ 7.04
008	NLA		Screw, Thermal Cut-off	A0	Appelez-nous	-
009	W10124350		Not Required	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
