SELECT A DIAGRAM

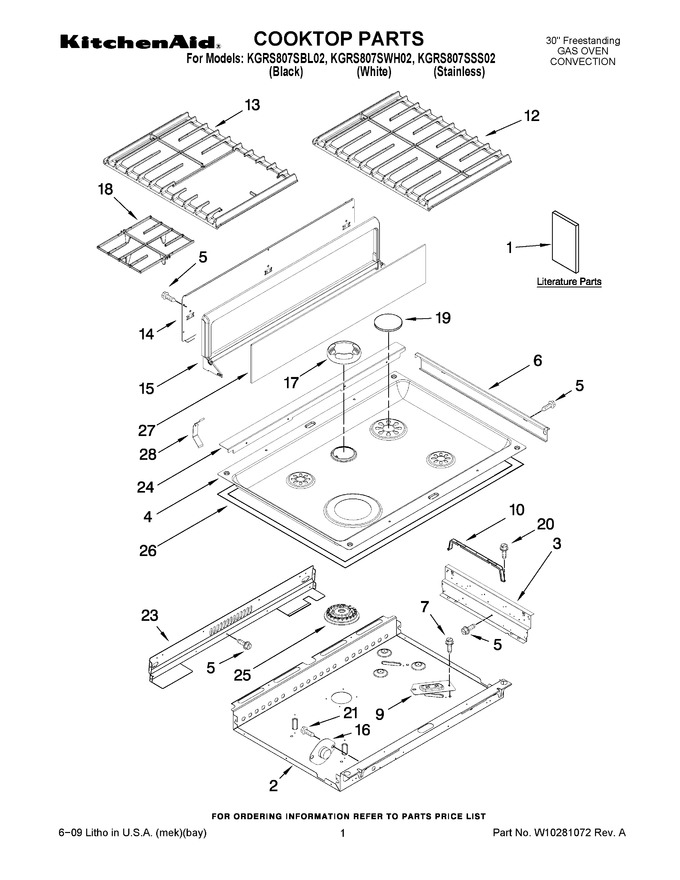

01 - Cooktop Parts


02 - Oven Parts


03 - Door Parts


04 - Drawer Parts


05 - Top Venting Parts


06 - Internal Oven Parts


07 - Cooktop Burner Parts


08 - Triple Crown Burner


09 - Control Panel Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Safe Cooking Tips (english)		Appelez-nous	-
1	9763467		Guide Easy Set		Appelez-nous	-
1	W10065852		Safe Cooking Tips (french)		Appelez-nous	-
1	W10075750		Installation Instructiions		Appelez-nous	-
1	W10162198		Use & Care Guide		Appelez-nous	-
1	W10112145		Tech Sheet (english)		Appelez-nous	-
1	W10112146		Tech Sheet (french)		Appelez-nous	-
1	9757680		Anti-tip Instructions		Appelez-nous	-
2	W10208808		Burner Box		Appelez-nous	-
3	9761784		Bracket, Mounting		Appelez-nous	-
4	W10175858		Cooktop (white)				$ 203.55
4	W10175857		Cooktop (black/stainless)				$ 219.11
5	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
6	W10140549		Trim, Cooktop Left (stainless)				$ 121.97
6	W10110682		Trim, Cooktop Left (black)				$ 189.56
6	W10110680		Trim, Cooktop Left (white)				$ 191.25
6	W10110687		Trim, Cooktop Right (black)				$ 187.68
6	W10110685		Trim, Cooktop Right (white)				$ 200.89
6	W10140550		Trim, Cooktop Right (stainless)				$ 116.16
7	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
9	9763445		Bracket, Burner		Appelez-nous	-
10	9756821		Support, Wiring		Appelez-nous	-
12	9761625CB		Grate, Burner Right (coal Black)				$ 107.60
12	9761625SN		Grate, Burner Right (satin Moleskin)				$ 107.42
12	9761625SD		Grate, Burner Right (satin Cumberland)				$ 173.10
13	9761624CB		Grate, Burner Left (coal Black)				$ 105.20
13	9761624SD		Grate, Burner Left (satin Cumberland)				$ 174.85
13	9761624SN		Grate, Burner Left (stain Moleskin)				$ 106.34
14	W10153092		Panel, Backsplash				$ 41.78
15	9763483BL		Gasket (black/stainless Models)				$ 104.52
15	9763483GY		Gasket (white)				$ 47.90
15	W10109750		Backsplash (black)				$ 96.30
15	W10109740		Backsplash (white)				$ 90.41
15	W10156267		Backsplash (stainless)				$ 112.79
16	WP9759944		Thermostat (60c)   (Replaces: 9759944)			Immediately	$ 121.57
17	9760225BL		Vent, Center (black)				$ 39.30
17	9760225WH		Vent, Center (white)				$ 51.12
18	9761557SD		Grate, Insert (satin Cumberland)				$ 76.15
18	WP9761557CB		Grate, Insert (coal Black)   (Replaces: 9761557CB)			Immediately	$ 153.36
18	9761557SN		Grate, Insert (satin Moleskin)		Appelez-nous	-
19	9761563CB		Cap, Burner 12.5k (rr) (coal Black)			Immediately	$ 92.83
19	WP8284669		Cap, Burner 6k (rf, Lr) (coal Black)   (Replaces: 8284669)			Immediately	$ 64.79
19	9761563SN		Cap, Burner 12.5k (rr) (satin Moleskin)				$ 114.41
19	9761563SD		Cap, Burner 12.5k (rr) (satin Cumberland)				$ 111.47
19	WP9761562SD		Cap, Burner 6k (rf, Lr) (satin Cumberland)   (Replaces: 9761562SD)				$ 115.88
19	9761562SN		Cap, Burner 6k (rf, Lr) (satin Moleskin 12.5k (rr))				$ 102.15
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
21	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
23	9759627		Cover, Cooktop Rear				$ 67.22
24	WP9763436		Cover, Top Rear   (Replaces: 9763436)				$ 127.77
25	WPW10406797		Head, Burner (rr)   (Replaces: 8286182)				$ 79.64
25	WPW10406243		Head, Burner (lr & Rf)   (Replaces: 8286181)			Immediately	$ 33.50
26	W10109920		Gasket (tape)				$ 43.42
27	9761749BL		Glass, Backsplash (black)				$ 142.53
27	9761749WH		Glass, Backsplash (white)				$ 164.35
28	9762768		Clip, Retainer				$ 38.30

    View Diagram in Separate Window       Print Part List
