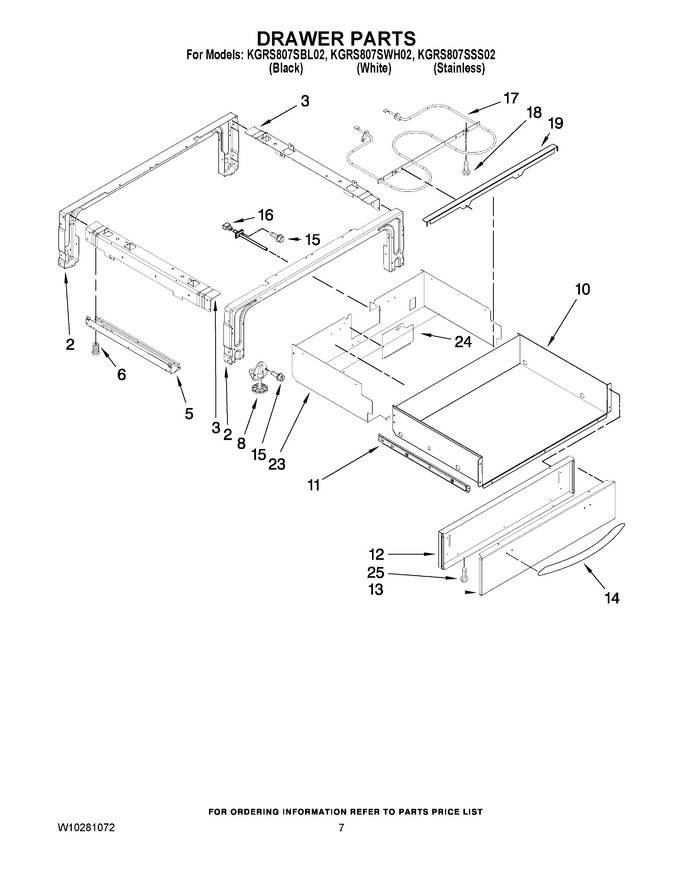

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	9763501BL		Support, Front & Rear				$ 43.72
3	4453721		Brace, Drawer (left)				$ 34.27
3	4453720		Brace, Drawer (right)				$ 34.27
5	9759953		Side, Base (right)				$ 108.70
5	9759954		Side, Base (left)				$ 88.47
6	WPW10058460		Foot   (Replaces: W10058460)			Immediately	$ 7.07
8	WP3196037		Foot Assembly   (Replaces: 3196037)				$ 74.67
10	W10164163		Drawer				$ 163.91
11	WPW10155632		Guide, Roller Includes Roller (left)   (Replaces: W10155632)				$ 93.18
11	W10155633		Guide, Roller Includes Roller (right)				$ 60.39
12	W10164169		Panel, Drawer		Appelez-nous	-
13	W10203760		Front, Drawer (black)				$ 18.33
13	W10203762		Front, Drawer (white)				$ 18.87
13	W10203763		Front, Drawer (stainless)				$ 99.87
14	9761573BL		Handle, Drawer (black)		Appelez-nous	-
14	9761573SS		Handle, Drawer (stainless)		Appelez-nous	-
14	9761573WH		Handle, Drawer (white)				$ 79.22
15	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
16	WP8274149		Thermistor   (Replaces: 8274149)			Immediately	$ 172.85
17	W10207401		Element, Warming				$ 105.28
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
19	9758676		Support, Element		Appelez-nous	-
23	9761796		Enclosure, Warming Drawer				$ 78.12
24	W10153099		Cover, Access		Appelez-nous	-
25	WP3400805		Screw   (Replaces: 3400805)				$ 6.47

    View Diagram in Separate Window       Print Part List
