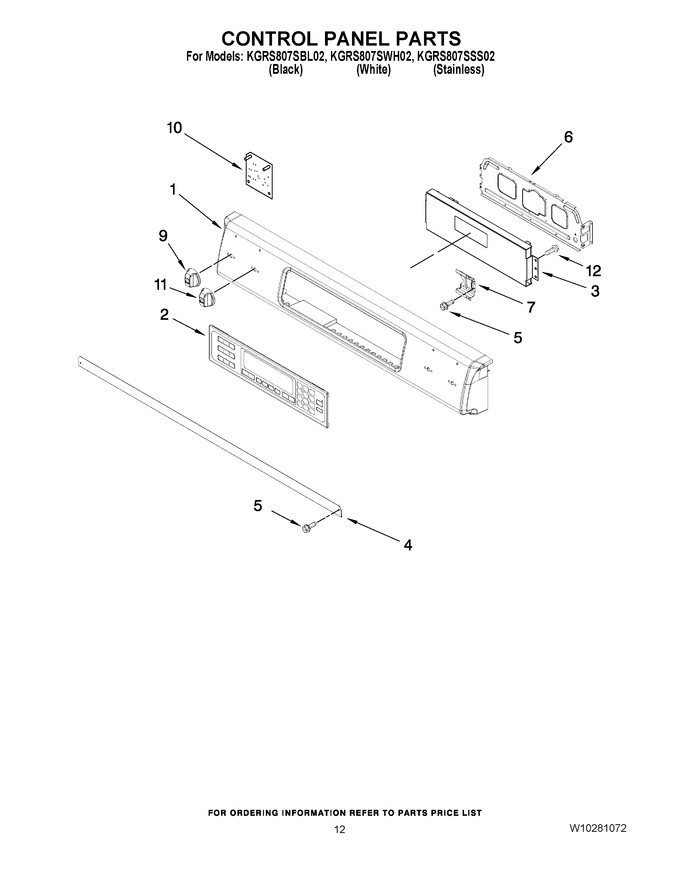

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10110718 | Control Panel (black) |
|
$ 200.82 | |||||
| 1 | W10110720 | Control Panel (white) |
|
$ 183.75 | |||||
| 1 | W10156269 | Control Panel (stainless) |
|
$ 249.84 | |||||
| 2 | WP9761566 | Switch, Membrane (Replaces: 9761566) |
|
Immediately | $ 405.23 | ||||
| 3 | WP9762794 | Control, Interface (Replaces: 9762794) |
|
$ 460.86 | |||||
| 4 | W10105370 | Shield, Console |
|
$ 69.83 | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 6 | 9757409 | Support, Gas Valve |
|
$ 81.65 | |||||
| 7 | 9761745 | Bracket, Touchsensor |
|
$ 40.75 | |||||
| 9 | WPW10156265 | Knob, Burner Rf, Rr, Lr (stainless) (Replaces: W10156265) |
|
$ 60.54 | |||||
| 9 | W10851044 | Knob, Burner Rf, Rr, Lr (white) (Replaces: W10193273) |
|
$ 20.10 | |||||
| 9 | W10193275 | Knob, Burner Rf, Rr, Lr (black) |
|
$ 65.09 | |||||
| 10 | WPW10331686 | Module, Spark (Replaces: 9758080) |
|
Immediately | $ 354.47 | ||||
| 11 | W10156262 | Knob, Tcb Lf (stainless) |
|
$ 20.88 | |||||
| 11 | W10193261 | Knob, Tcb Lf (white) |
|
$ 20.03 | |||||
| 11 | W10193263 | Knob, Tcb Lf (black) |
|
$ 16.92 | |||||
| 12 | 9780271 | Screw |
|
- |
