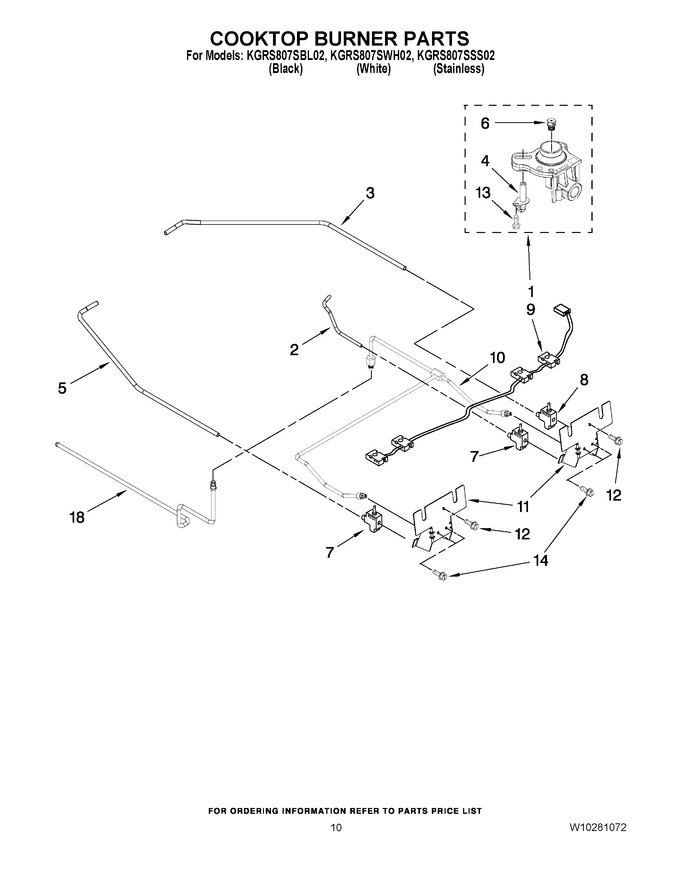

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10128455 | Burner Base (rr) |
|
$ 48.58 | |||||
| 1 | WPW10128446 | Burner Base (lr, Rf) (Replaces: W10128446) |
|
Immediately | $ 97.44 | ||||
| 2 | 9761069 | Tubing, Burner (rf) |
|
$ 49.98 | |||||
| 3 | 9761070 | Tubing, Burner (rr) |
|
$ 52.24 | |||||
| 4 | WPW10110378 | Ingiter, Orifice Holder (Replaces: W10110378) |
|
Immediately | $ 46.89 | ||||
| 5 | 9761068 | Tubing, Burner (lr) |
|
$ 50.22 | |||||
| 6 | 9762937 | Orifice (lr, Rf) |
|
$ 88.97 | |||||
| 6 | 9762938 | Orifice (rr) |
|
$ 67.28 | |||||
| 7 | WP4456816 | Valve, Burner Small (2) (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 8 | WP4456817 | Valve, Burner Large (Replaces: 4456817) |
|
$ 286.38 | |||||
| 9 | WP9756824 | Spark Switch & Harness Assembly (Replaces: 9756824) |
|
Immediately | $ 161.92 | ||||
| 10 | 9761648 | Tube, Manifold |
|
$ 66.48 | |||||
| 11 | 9761641 | Manifold (tcb) |
|
$ 73.13 | |||||
| 11 | 9761642 | Manifold (cooktop) |
|
$ 165.03 | |||||
| 12 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 13 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 14 | 12002277 | Bolt, Valve (4) (Replaces: 7101P640-60) |
|
$ 272.78 | |||||
| 18 | 4453754 | Tubing Gds To Manifold |
|
$ 208.86 |
