Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9757680 Instructions, Anti-tip Appelez-nous -
1 9763467 Guide Easy Set Appelez-nous -
1 W10118262 Installation Instructiions Appelez-nous -
1 W10162198 Use & Care Guide Appelez-nous -
1 W10221015 Tech Sheet Appelez-nous -
1 W10065852 Tips, Safe Cooking (french) Appelez-nous -
1 9762761 Tips, Safe Cooking (english) Appelez-nous -
2 W10208808 Burner Box Appelez-nous -
3 9761784 Frame, Cooktop Appelez-nous -
4 W10175855 Cooktop (white) Appelez-nous -
4 W10175854 Cooktop (black) Special Order $ 195.36

5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

6 WP12990527 Screw   (Replaces: 3400843) In-Stock Immediately $ 7.15

7 9763445 Bracket, Burner Appelez-nous -
8 9756821 Support, Wiring Appelez-nous -
9 9761555CB Grate, Burner Right (coal Black) Special Order $ 191.98

9 9761555SD Grate, Burner Right (satin Cumberland Special Order $ 106.22

10 9761560SD Grate, Burner Left (satin Cumberland) Appelez-nous -
10 9761560CB Grate, Burner Left (coal Black) Appelez-nous -
11 WP9759944 Thermostat, 70c   (Replaces: 9759944) In-Stock Immediately $ 121.57

12 9760225BL Vent, Center (black) Special Order $ 39.30

12 9760225WH Vent, Center (white) Special Order $ 51.12

13 9761563CB Cap, Burner (left Rear & Right Front) (coal Black) In-Stock Immediately $ 92.83

13 9761563SD Cap, Burner (left Rear & Right Front) (satin Cumberland (left Front)) Special Order $ 111.47

13 9761564CB Cap, Burner (left Rear & Right Front) (coal Black) Special Order $ 50.54

13 WP8284669 Cap, Burner (left Rear & Right Front) (coal Black)   (Replaces: 8284669) In-Stock Immediately $ 64.79

13 WP9761562SD Cap, Burner (left Rear & Right Front) (satin Cumberland (right Rear))   (Replaces: 9761562SD) Special Order $ 115.88

13 9761564SD Cap, Burner (left Rear & Right Front) (satin Cumberland) Appelez-nous -
14 WP4449809 Screw   (Replaces: 4449809) In-Stock Immediately $ 6.47

15 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 6.47

16 9759627 Cover, Cooktop Rear Special Order $ 67.22

17 WP9763436 Cover, Top Rear   (Replaces: 9763436) Special Order $ 127.77

18 WPW10406797 Burner Head, Rapid (12k) (right Rear)   (Replaces: 8286182) Special Order $ 79.64

18 9762553 Burner Head, Turbo (left Front) Special Order $ 127.47

18 WPW10406243 Burner Head, Auxiliary (6k) (left Rear & Right Front)   (Replaces: 8286181) In-Stock Immediately $ 33.50

19 W10109920 Gasket (tape) Special Order $ 43.42

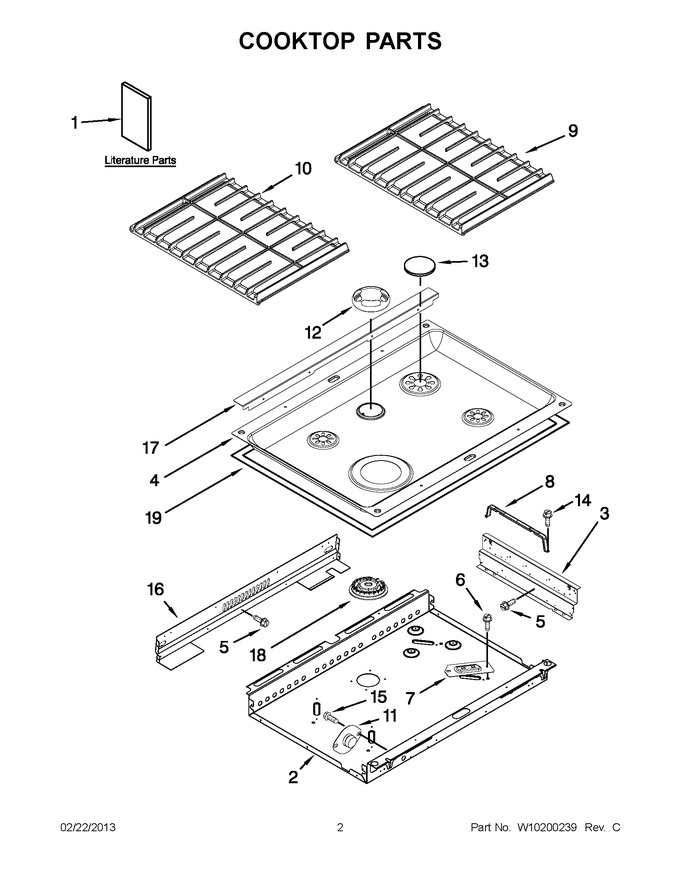

    View Diagram in Separate Window     Print Icon   Print Part List
