01 - Cooktop Parts


02 - Oven Parts

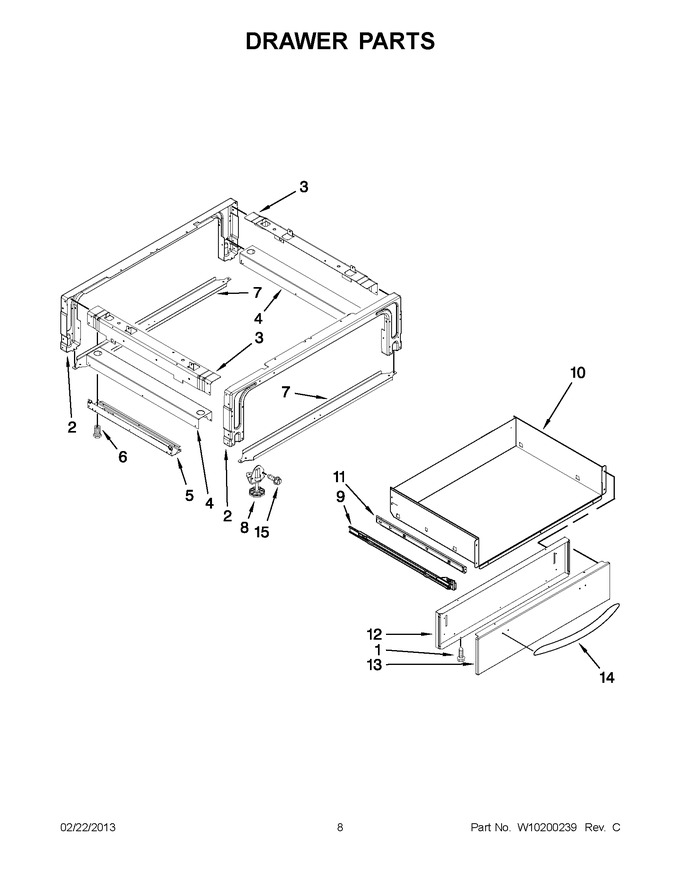

03 - Door Parts


04 - Drawer Parts


05 - Top Venting


06 - Internal Oven Parts


07 - Cooktop Burner Parts


08 - Control Panel Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400805		Screw   (Replaces: 3400805)				$ 6.47
2	9763501BL		Support				$ 43.72
3	4453721		Brace, Drawer (left)				$ 34.27
3	4453720		Brace, Drawer (right)				$ 34.27
4	9759965		Bracket, Base		Appelez-nous	-
5	9759954		Base, Side (left)				$ 88.47
5	9759953		Base, Side (right)				$ 108.70
6	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.07
7	9759943		Brace, Base Front		Appelez-nous	-
8	WP3196037		Assembly, Foot   (Replaces: 3196037)				$ 74.67
9	9756838		Rail, Storage (left)		Appelez-nous	-
9	9756836		Rail, Storage (right)		Appelez-nous	-
10	9757806		Drawer				$ 182.02
11	9756841		Assembly, Drawer Guide (right)		Appelez-nous	-
11	9756842		Assembly, Drawer Guide (left)				$ 70.28
12	W10140544		Panel, Drawer		Appelez-nous	-
13	W10203762		Front, Drawer (white)				$ 18.87
13	W10203760		Front, Drawer (black)				$ 18.33
13	W10203763		Front, Drawer (stainless)				$ 99.87
14	W10292374		Handle, Drawer (stainless)				$ 100.87
14	W10292379		Handle, Drawer (white)				$ 79.22
14	W10292375		Handle, Drawer (black)		Appelez-nous	-
15	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16

    View Diagram in Separate Window       Print Part List
