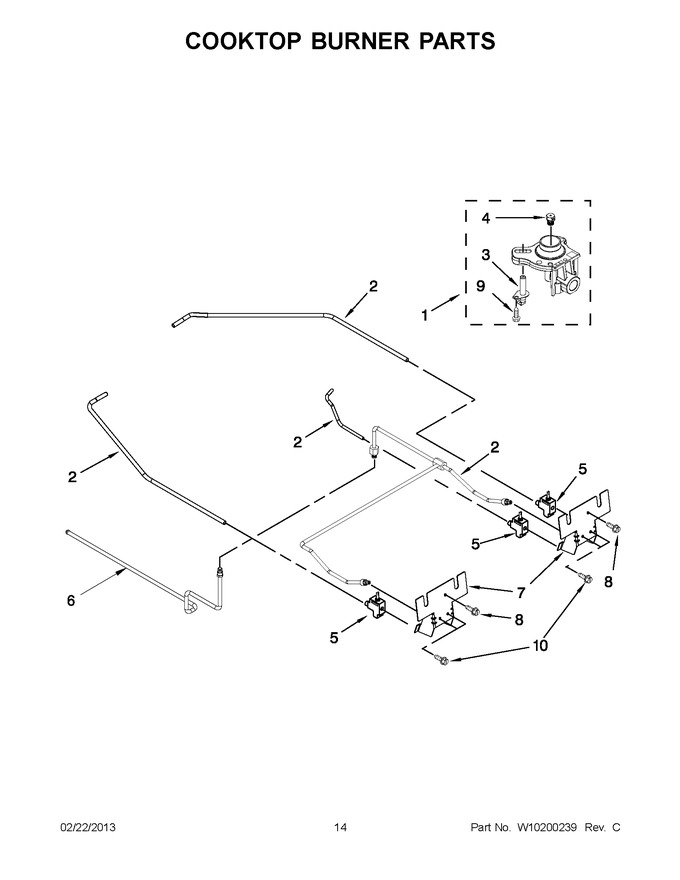

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10128455 | Assembly, Orifice Holder (right Rear) |
|
$ 48.58 | |||||
| 1 | WPW10128446 | Assembly, Orifice Holder (left Rear & Right Front) (Replaces: W10128446) |
|
Immediately | $ 97.44 | ||||
| 1 | W10128456 | Assembly, Orifice Holder (left Front) |
|
$ 47.21 | |||||
| 2 | 9761068 | Tubing, Burner (left Rear) |
|
$ 50.22 | |||||
| 2 | 9761561 | Tubing, Burner (left Front) |
|
- | |||||
| 2 | 9761070 | Tubing, Burner (right Rear) |
|
$ 52.24 | |||||
| 2 | 9761069 | Tubing, Burner (right Front) |
|
$ 49.98 | |||||
| 3 | WPW10110378 | Ignitor, Orifice (Replaces: W10110378) |
|
Immediately | $ 46.89 | ||||
| 4 | 9762937 | Orifice, Spud (left Rear & Right Front) |
|
$ 88.97 | |||||
| 4 | 9762938 | Orifice, Spud (right Rear) |
|
$ 67.28 | |||||
| 4 | 9762939 | Orifice, Spud (right Front) |
|
- | |||||
| 5 | WP4456817 | Valve, Burner (right Rear) (Replaces: 4456817) |
|
$ 286.38 | |||||
| 5 | 4456818 | Valve, Burner (left Front) |
|
$ 231.30 | |||||
| 5 | WP4456816 | Valve, Burner (left Rear & Right Front) (Replaces: 4456816) |
|
Immediately | $ 286.55 | ||||
| 6 | 4453754 | Tubing Gds To Manifold |
|
$ 208.86 | |||||
| 7 | 9761642 | Manifold, Cooktop |
|
$ 165.03 | |||||
| 8 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 9 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 10 | 8523704 | Screw |
|
- |
