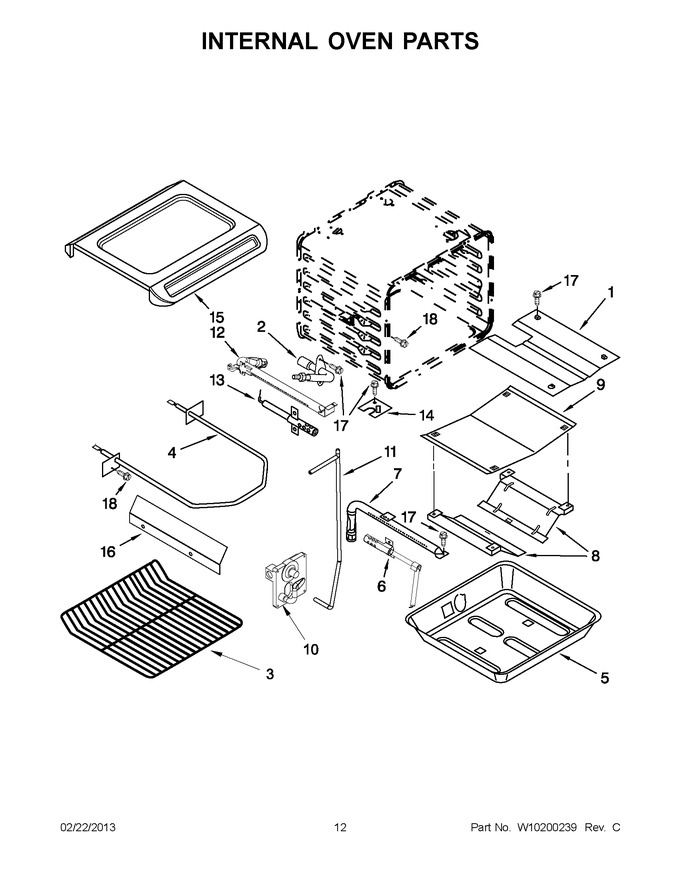

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9752980 | Shield, Broiler Flame |
|
$ 38.26 | |||||
| 2 | 9757779 | Fitting, Broiler |
|
$ 130.68 | |||||
| 3 | WPW10179152 | Rack, Oven (Replaces: W10179152) |
|
Immediately | $ 107.65 | ||||
| 4 | W10207402 | Element, Broil |
|
$ 125.73 | |||||
| 5 | WPW10145744 | Support, Bake Pan (Replaces: W10145744) |
|
$ 183.56 | |||||
| 6 | WP9760229 | Electrode, Bake Burner (Replaces: 9760229) |
|
Immediately | $ 139.47 | ||||
| 7 | WP9760228 | Burner, Bake Log (Replaces: 9760228) |
|
$ 225.21 | |||||
| 8 | 9752737 | Shield, Oven |
|
$ 22.04 | |||||
| 9 | 4453984 | Shield, Bake Flame |
|
- | |||||
| 10 | WP9763716 | Assembly, Valve (Replaces: 9763716) |
|
Immediately | $ 481.13 | ||||
| 11 | 9756831 | Tube, Broil |
|
$ 155.53 | |||||
| 12 | W10111219 | Burner, Broil |
|
$ 94.75 | |||||
| 13 | WP8054129 | Electrode, Broil (Replaces: 8054129) |
|
Immediately | $ 123.43 | ||||
| 14 | 4454009 | Cover, Ignitor |
|
$ 5.31 | |||||
| 15 | WPW10272546 | Pan, Oven Bottom (Replaces: 4453920) |
|
Immediately | $ 190.73 | ||||
| 16 | W10153101 | Diverter, Air |
|
$ 33.97 | |||||
| 17 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 18 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 |
