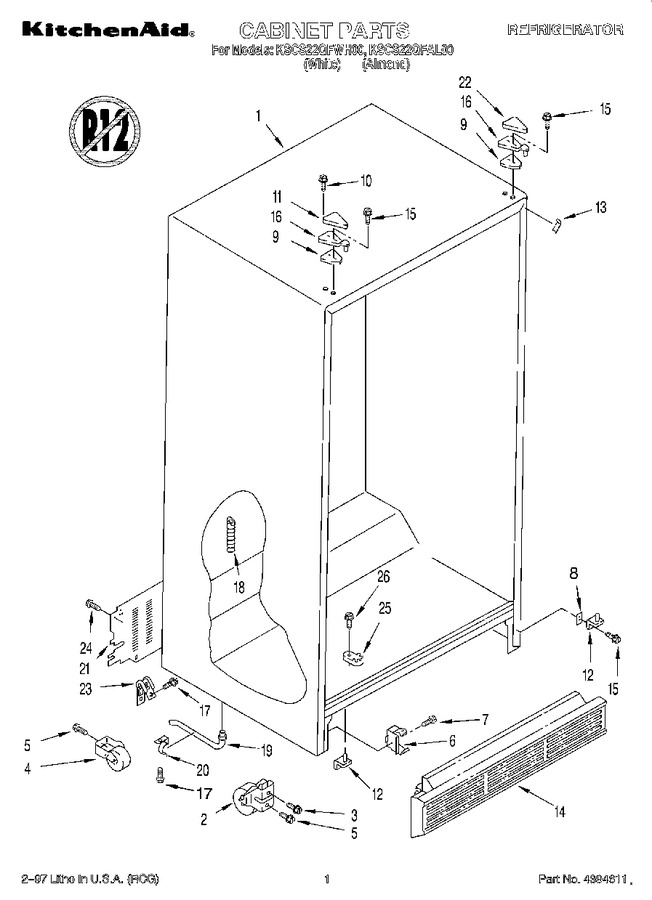

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 10.69
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 36.15
5	WP489427		Screw   (Replaces: 489427)				$ 6.72
6	WP2155013		Clip, Grille (2)   (Replaces: 2155013)			Immediately	$ 6.95
7	WP489478		Screw   (Replaces: 489478)				$ 6.98
8	WP2181911		Shim   (Replaces: 2181911)				$ 29.89
9	2171868		Shim, Hinge Top		Appelez-nous	-
10	489284		Screw		Appelez-nous	-
11	1129262		Hinge Cover (white)				$ 15.75
11	2150343		Hinge Cover (almond)		Appelez-nous	-
12	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 80.01
13	1110709		Filler, Wrapper (almond)		Appelez-nous	-
13	1110708		Filler, Wrapper (white)		Appelez-nous	-
14	2155478		Grille (almond)		Appelez-nous	-
14	2155477		Grille (white)		Appelez-nous	-
15	WP999367		Screw   (Replaces: 489367)				$ 7.07
16	2171865		Hinge Top (2)		Appelez-nous	-
17	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
18	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 45.81
19	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 28.20
20	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 9.67
21	WP2188756		Cover, Unit   (Replaces: 2171938)				$ 127.50
22	1119787		Hinge Cover (white)				$ 22.50
22	1119789		Hinge Cover (almond)		Appelez-nous	-
23	549193		Clamp-service Cord				$ 12.05
24	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
25	WPW10329686		Door Closer, Lower Cam   (Replaces: 2155311)			Immediately	$ 4.89
26	WP489483		Screw   (Replaces: 489483)				$ 9.78
