SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Freezer Liner


11 - Air Flow


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

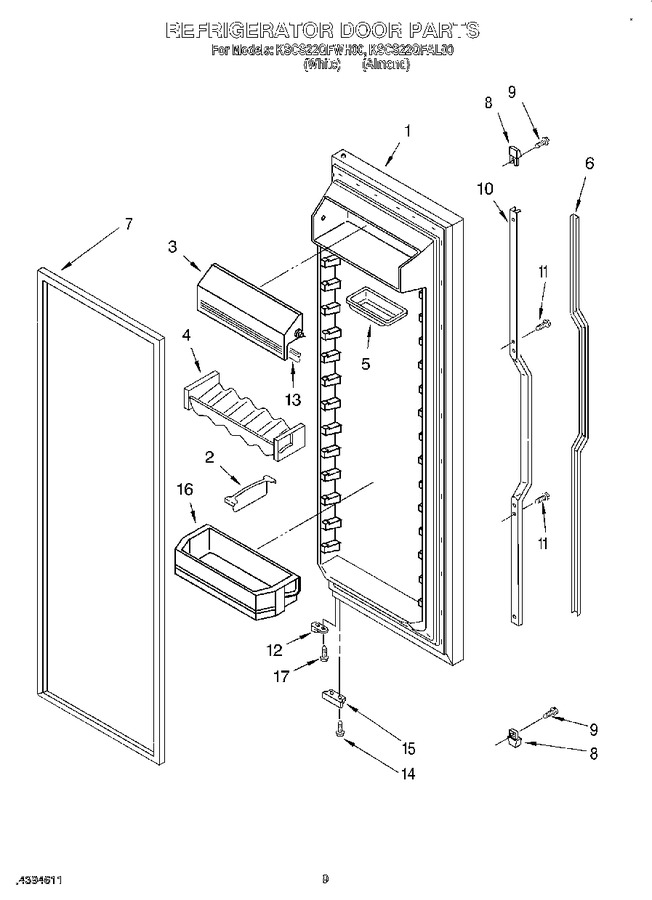

1	2194200W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2194200N		Refrigerator Door (includes No.7) (almond)		Appelez-nous	-
2	2171283		Load, Lock (4)		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2173830		Insert, Handle (white)		Appelez-nous	-
6	2173831		Insert, Handle (almond)		Appelez-nous	-
7	2159073		Door Gasket, Magnetic (service)				$ 285.59
8	2194778W		End Cap, Handle (white)		Appelez-nous	-
8	2194778N		End Cap, Handle (almond)		Appelez-nous	-
9	489075		Screw		Appelez-nous	-
10	2194776W		Retainer, Insert (white)		Appelez-nous	-
10	2194776N		Retainer, Insert (almond)		Appelez-nous	-
11	WP489463		Screw   (Replaces: 489463)				$ 7.04
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 24.62
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 9.78
15	2155332		Bracket, Door Stop		Appelez-nous	-
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
