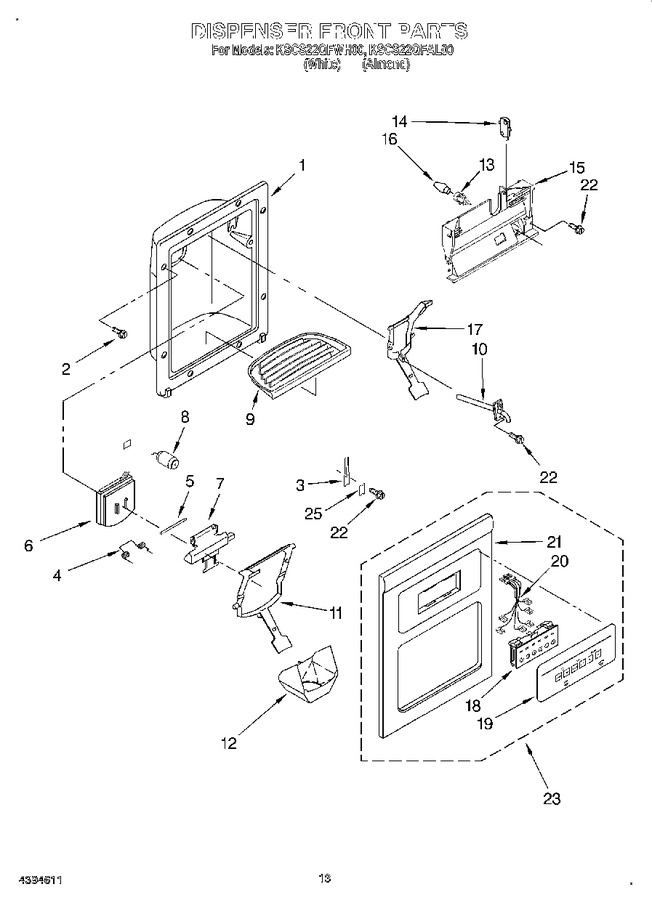

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
2	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.07
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 10.59
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 74.92
5	WP2196195		Pin   (Replaces: 2180210)				$ 13.12
6	2180205		Door, Ice		Appelez-nous	-
7	2180208		Door Mechanism Assembly		Appelez-nous	-
8	2180223		Delay Mechanism		Appelez-nous	-
9	2180324		Grille, Overflow (almond)		Appelez-nous	-
9	2180323		Grille, Overflow (white)				$ 30.68
10	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2180225)				$ 248.79
11	2180260		Lever, Ice Dispenser (almond)		Appelez-nous	-
11	2180259		Lever, Ice Dispenser (white)				$ 42.12
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 24.87
13	2180200		Lamp Holder				$ 88.79
14	WP2162361		Switch (4)   (Replaces: 2162361)			Immediately	$ 24.61
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 21.95
16	WP22002263		Bulb, Light   (Replaces: 851389)			Immediately	$ 12.29
17	WPW10152858		Lever, Water Dispenser (white)   (Replaces: 2180268)			Immediately	$ 94.14
17	2180269		Lever, Water Dispenser (almond)		Appelez-nous	-
18	WP2180236		Switch Assembly (also Order Item No.19)   (Replaces: 2180236)				$ 246.86
19	2180365		Plaque, Front Cover (white)		Appelez-nous	-
19	2180366		Plaque, Front Cover (almond)		Appelez-nous	-
20	2311650		Wire Assembly   (Replaces: 2180240)				$ 80.71
21	N/A		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	WP3400906		Screw   (Replaces: 489000)				$ 7.06
23	2180394		Front Cover Assembly (includes Items 18, 19, 20 & 21) (almond)		Appelez-nous	-
23	2180393		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 10.50
