SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Control


04 - Refrigerator Shelf


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Freezer Liner


11 - Air Flow


12 - Icemaker, Lit/optional

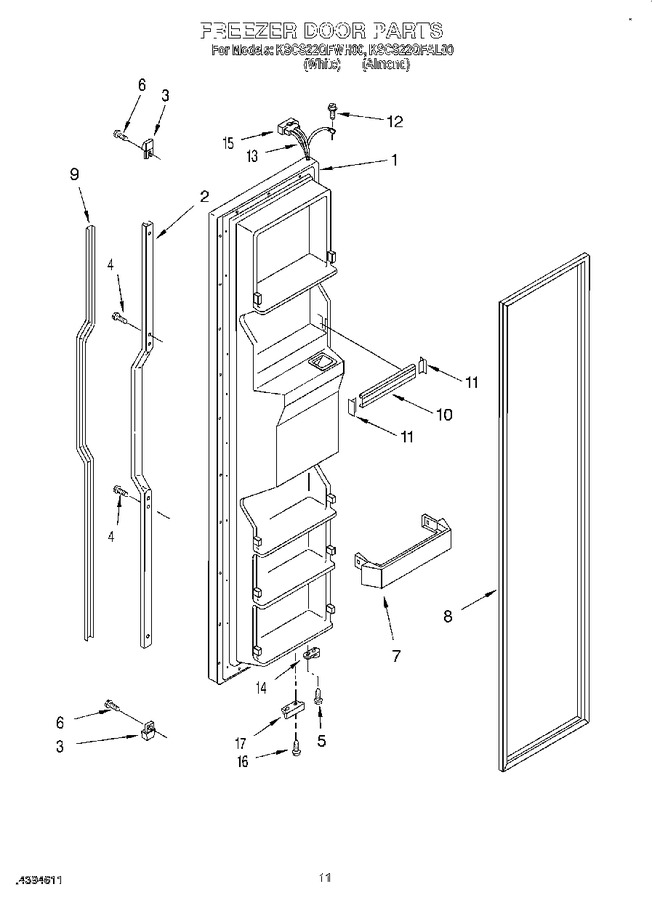

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2182861		Freezer Door (includes No.8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2182860		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2194776W		Retainer, Insert (white)		Appelez-nous	-
2	2194776N		Retainer, Insert (almond)		Appelez-nous	-
3	2194778N		End Cap (2) (almond)		Appelez-nous	-
3	2194778W		End Cap (2) (white)		Appelez-nous	-
4	WP489463		Screw   (Replaces: 489463)				$ 7.04
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
6	489075		Screw		Appelez-nous	-
7	2171071		Shelf Bin (4)		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service)				$ 277.37
9	2173831		Insert, Handle (almond)		Appelez-nous	-
9	2173830		Insert, Handle (white)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2171134)			Immediately	$ 20.80
11	WP2156006		End Cap   (Replaces: 2156006)			Immediately	$ 10.96
12	WP488234		Screw   (Replaces: 489422)				$ 6.07
13	2180229		Wire Harness				$ 73.70
14	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 24.62
15	WP2154473		Connector   (Replaces: 2154473)				$ 21.29
16	WP489483		Screw   (Replaces: 489420)				$ 9.78
17	2155332		Bracket, Door Stop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
