SELECT A DIAGRAM

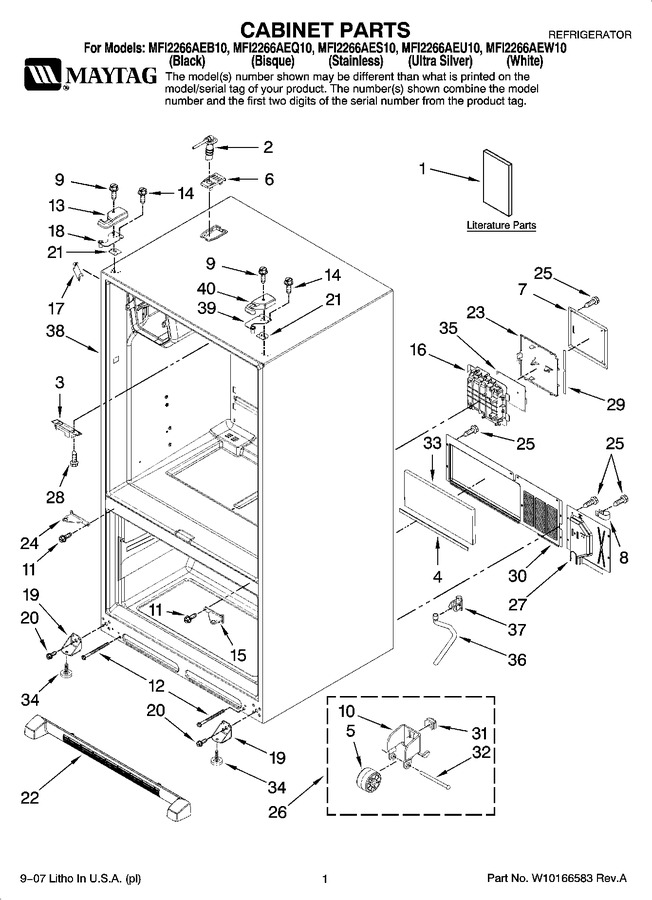

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Shelf Parts


04 - Motor And Ice Container Parts


05 - Freezer Liner Parts


06 - Refrigerator Door Parts


07 - Dispenser Front Parts


08 - Freezer Door Parts


09 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10164009		Tech Sheet		Appelez-nous	-
1	W10164010		Use & Care Guide		Appelez-nous	-
1	W10166619		Tag, Energy		Appelez-nous	-
1	16026312		Service Manual (bottom Mount)		Appelez-nous	-
2	W11551552		Tube W/waterline, Fill-im   (Replaces: W10165840)			Immediately	$ 17.31
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.04
4	B5759649		Gasket, Mc Back		Appelez-nous	-
5	WP10450603		Roller   (Replaces: 67005127)				$ 7.09
6	12981401W		Cover, Fill Tube (white)   (Replaces: 67006321)				$ 11.36
6	12981401B		Cover, Fill Tube (black)   (Replaces: 67006320)				$ 11.36
7	67006427		Cover, Control Box		Appelez-nous	-
8	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 9.89
9	WP8281196		Screw, Hinge Cover   (Replaces: 67006521)			Immediately	$ 6.47
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 45.51
11	W11573362		Screw, Center Hinge   (Replaces: 67006380)				$ 12.62
12	71003131		Bolt, Roller Adj   (Replaces: 67006611)			Immediately	$ 6.07
13	WPW10337634		Cover, Top Hinge (left) (white)   (Replaces: 67005953)			Immediately	$ 20.18
13	67005952		Cover, Top Hinge (left) (bisque)		Appelez-nous	-
13	W10337647		Cover, Top Hinge (left) (black)   (Replaces: 67005951)			Immediately	$ 20.00
14	WP489349		Screw, Top Hinge   (Replaces: 67006303)			Immediately	$ 7.09
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 67006443)				$ 77.98
15	67006379		Hinge, Center (rt) (white)		Appelez-nous	-
16	WP67006390		Box, Hv Control   (Replaces: 67006390)				$ 183.93
17	67003485		Cover, Corner (2) (black)			Immediately	$ 18.98
17	67003486		Cover, Corner (2) (bisque)		Appelez-nous	-
17	67003484		Cover, Corner (2) (white)				$ 18.36
18	W11592375		Hinge, Top Left   (Replaces: 67005950)				$ 26.18
19	12906303WD		Bracket, Foot Cabinet (2)   (Replaces: 67007174)				$ 75.92
20	67006564		Screw (8)			Immediately	$ 6.92
21	12999502		Shim, Top Hinge (right)   (Replaces: 67006309)				$ 86.23
21	12999501		Shim, Top Hinge (left)   (Replaces: 67006308)				$ 85.31
22	WPW10534161		Grille, Toe (white)   (Replaces: 67007004)				$ 126.08
22	WPW10534162		Grille, Toe (black)   (Replaces: 67006954)				$ 126.99
22	67006791		Grille, Toe (bisque)				$ 51.98
23	67006428		Lid, Hv Control				$ 53.61
24	67006442		Hinge, Center (lt) (black)				$ 103.52
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 67006277)				$ 83.93
25	67006425		Screw, Cover			Immediately	$ 6.26
26	67006118		Roller Assy. (2)		Appelez-nous	-
27	W10165838		Cover, Water Valve		Appelez-nous	-
28	W11233072		Screw, Block   (Replaces: 67006626)			Immediately	$ 12.62
29	67006429		Gasket, Hv Control				$ 11.24
30	12575101ED		Back, Mach Comp		Appelez-nous	-
31	M0286708		Nut, Speed				$ 41.01
32	M1205302		Rivet				$ 5.85
33	67003796		Fiber, Acoustic				$ 19.27
34	W11177593		Brake, Foot   (Replaces: 67003868)				$ 10.44
35	WPW10310240		Board, Hv Control   (Replaces: W10165854)			Immediately	$ 352.67
36	67001066		Tube, Drain				$ 55.82
37	67001067		Clip, Drain Tube				$ 8.28
39	W11592374		Hinge, Top Right   (Replaces: 67005955)			Immediately	$ 26.12
40	67005958		Cover, Top Hinge (right) (white)				$ 18.49
40	WP67005956		Cover, Top Hinge (right) (black)   (Replaces: 67005956)				$ 19.32
40	67005957		Cover, Top Hinge (right) (bisque)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
