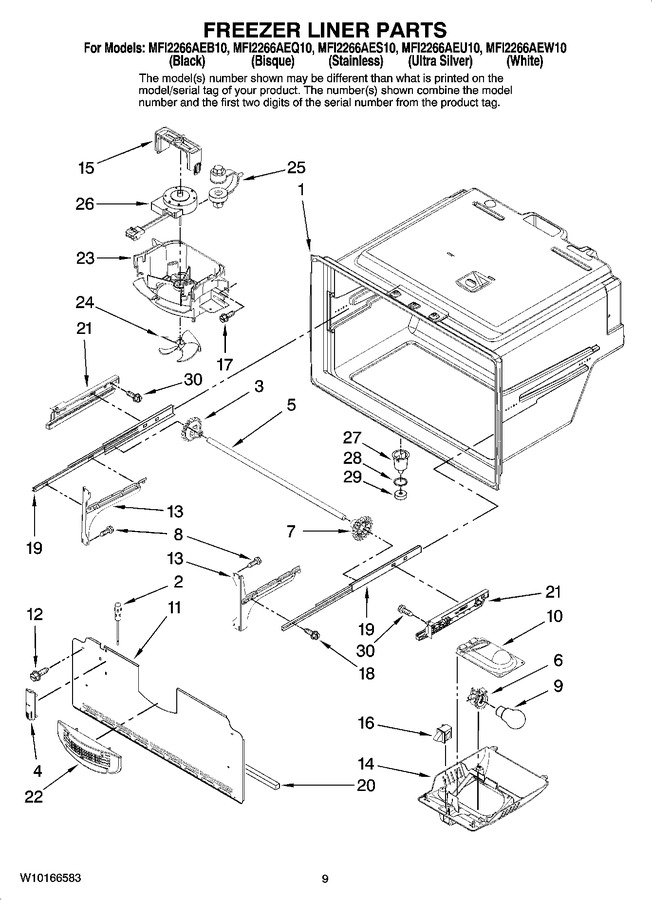

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 12002355 | Thermistor Kit |
|
Immediately | $ 42.62 | ||||
| 3 | 12002497 | Gear (left) (includes Item 7) |
|
Immediately | $ 20.26 | ||||
| 4 | WP67003924 | Cover, Thermistor (Replaces: 67003924) |
|
$ 7.04 | |||||
| 5 | W11715937 | Shaft, Rack (Replaces: 67004261) |
|
$ 58.88 | |||||
| 6 | W11447232 | Socket, Light (Replaces: Y12570701) |
|
Immediately | $ 11.89 | ||||
| 7 | 12002497 | Gear (right) (includes Item 3) |
|
Immediately | $ 20.26 | ||||
| 8 | WP98165 | Screw, Bracket (Replaces: 67006473) |
|
$ 7.20 | |||||
| 9 | W11679940 | Bulb, Light (Replaces: A0282812) |
|
Immediately | $ 10.17 | ||||
| 10 | W11702858 | Housing, Light (Replaces: 67001035) |
|
Immediately | $ 77.24 | ||||
| 11 | W10308422 | Cover, Evap (Replaces: W10165973) |
|
$ 71.69 | |||||
| 12 | 67006425 | Screw |
|
Immediately | $ 6.26 | ||||
| 13 | WPW10330991 | Bracket, Door Slide (left) (Replaces: W10122147) |
|
Immediately | $ 140.84 | ||||
| 13 | WPW10330993 | Bracket, Door Slide (right) (Replaces: W10122148) |
|
Immediately | $ 142.36 | ||||
| 14 | 67006423 | Module, Freezer Light |
|
$ 54.86 | |||||
| 15 | W11712696 | Clip, Fan Motor (Replaces: 67006338) |
|
Immediately | $ 10.49 | ||||
| 16 | W11445850 | Switch, Rocker (Replaces: 67006422) |
|
Immediately | $ 45.10 | ||||
| 17 | WP98165 | Screw, Fan Shroud (Replaces: 67006287) |
|
$ 7.20 | |||||
| 18 | WP3400805 | Screw, Slide To Basket (Replaces: 67006769) |
|
$ 6.47 | |||||
| 19 | W11658402 | Slide-drawer (2) (Replaces: W10120018) |
|
Immediately | $ 114.76 | ||||
| 20 | W11451451 | Gasket, Foam (Replaces: 67003731) |
|
$ 11.17 | |||||
| 21 | WPW10284683 | Adapter (right) (Replaces: W10120083) |
|
$ 186.84 | |||||
| 21 | WPW10284682 | Adapter (left) (Replaces: W10120017) |
|
Immediately | $ 121.19 | ||||
| 22 | W11176847 | Grille, Air (Replaces: 67006382) |
|
$ 106.43 | |||||
| 23 | W11700329 | Shroud, Evap Fan (Replaces: 67006424) |
|
Immediately | $ 52.46 | ||||
| 24 | WP67006337 | Blade, Fan (evaporator) (Replaces: 67006337) |
|
Immediately | $ 81.41 | ||||
| 25 | W11676465 | Grommet, Fan Motor (2) (Replaces: 67006339) |
|
Immediately | $ 13.34 | ||||
| 26 | W10850438 | Motor, Evaporator Fan (Replaces: W10162809) |
|
Immediately | $ 275.75 | ||||
| 27 | W10815413 | Funnel, Drain (Replaces: D7753903) |
|
Immediately | $ 44.15 | ||||
| 28 | WPM0500703 | Seal, O Ring (Replaces: M0500703) |
|
$ 9.83 | |||||
| 29 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) |
|
$ 6.67 | |||||
| 30 | WP489474 | Screw, Adapter (Replaces: 67006406) |
|
Immediately | $ 7.17 |
