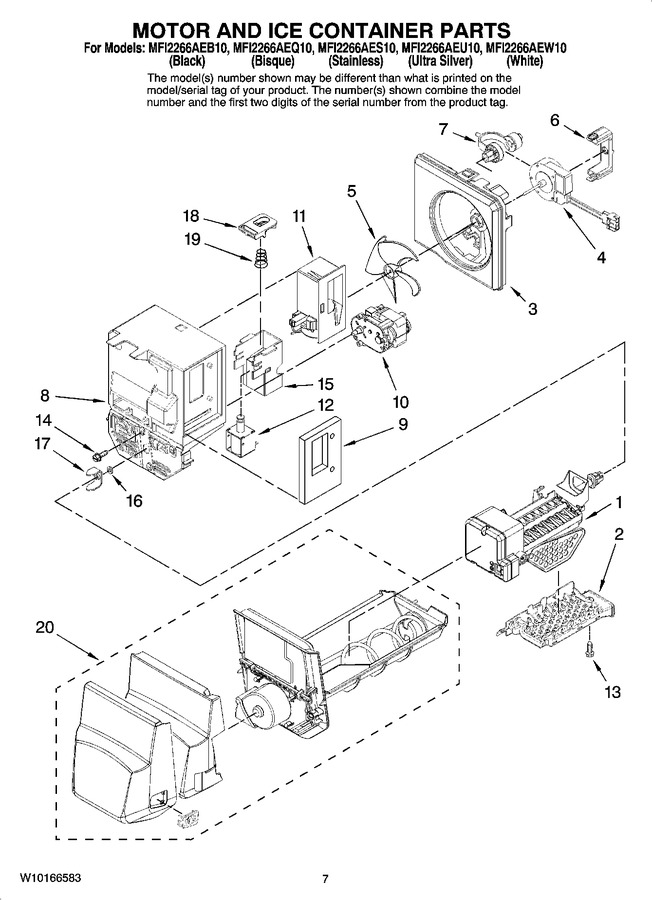

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10583817 | Icemaker (includes Fill Tube Cup, Wire Harness & Sensor Arm) (Replaces: W10149456) |
|
Immediately | $ 377.39 | ||||
| 2 | 67006334 | Impinger Assembly |
|
- | |||||
| 3 | 67006335 | Shroud, Ice Box Fan |
|
- | |||||
| 4 | WPW10162697 | Motor, Fan (Replaces: W10162697) |
|
$ 304.84 | |||||
| 5 | WP67006337 | Blade, Fan (Replaces: 67006337) |
|
Immediately | $ 81.41 | ||||
| 6 | W10165970 | Clip, Fan Motor |
|
$ 76.43 | |||||
| 7 | W11676465 | Grommet, Fan Motor (Replaces: 67006339) |
|
Immediately | $ 13.34 | ||||
| 8 | W10162707 | Divider, Ice Box |
|
- | |||||
| 9 | WP67006341 | Gasket, Damper (Replaces: 67006341) |
|
$ 7.16 | |||||
| 10 | 67006342 | Motor, Auger |
|
$ 302.98 | |||||
| 11 | WPW10127427 | Damper, Control (Replaces: W10127427) |
|
Immediately | $ 221.95 | ||||
| 12 | 67006344 | Solenoid |
|
$ 171.88 | |||||
| 13 | 67007110 | Screw, Impinger |
|
- | |||||
| 14 | 67006425 | Screw (3) |
|
Immediately | $ 6.26 | ||||
| 15 | 67007111 | Bracket, Solenoid |
|
$ 19.04 | |||||
| 16 | 67006346 | Washer |
|
$ 13.69 | |||||
| 17 | WP63052-2 | Yoke, Ice Dispenser (Replaces: 63052-1) |
|
Immediately | $ 62.02 | ||||
| 18 | 67006347 | Yoke, Solenoid |
|
$ 9.95 | |||||
| 19 | 67006348 | Spring, Solenoid |
|
$ 11.52 | |||||
| 20 | WPW10324089 | Ice Bin Assembly (includes Auger) (Replaces: W10165971) |
|
Immediately | $ 307.09 |
