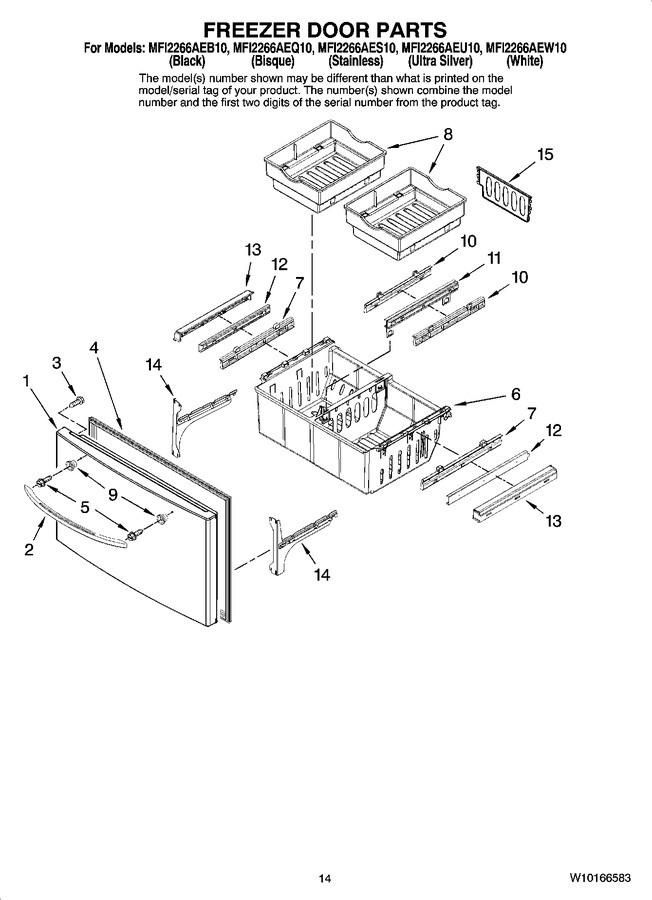

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10160125 | Freezer Door (black) |
|
- | |||||
| 1 | W10160128 | Freezer Door (bisque) |
|
- | |||||
| 1 | W10160131 | Freezer Door (stainless) |
|
- | |||||
| 1 | W10166241 | Freezer Door (ultra Silver) |
|
- | |||||
| 1 | 12977868WQ | Freezer Door (white) (Replaces: W10160134) |
|
$ 996.52 | |||||
| 2 | WPW10123792 | Handle, Door (white) (Replaces: W10123792) |
|
$ 187.59 | |||||
| 2 | W10123794 | Handle, Door (black) |
|
$ 82.81 | |||||
| 2 | W10123793 | Handle, Door (bisque) |
|
- | |||||
| 2 | WPW10123795 | Handle, Door (stainless) (Replaces: W10123795) |
|
$ 239.04 | |||||
| 3 | 12991101 | Screw (Replaces: 67006408) |
|
$ 11.55 | |||||
| 4 | W10436254 | Gasket, Door (black) (Replaces: W10166186) |
|
$ 272.93 | |||||
| 4 | W10443323 | Gasket, Door (white) (Replaces: W10166180) |
|
$ 303.28 | |||||
| 5 | WP3387230 | Screw, Handle (Replaces: 67002935) |
|
Immediately | $ 7.69 | ||||
| 6 | W10166235 | Bin, Lower |
|
$ 158.33 | |||||
| 7 | W10166742 | Adapter, Bin (outer) |
|
$ 84.11 | |||||
| 8 | WP12924903 | Bin, Upper (left) (Replaces: W10166237) |
|
$ 113.40 | |||||
| 8 | W10166236 | Bin, Upper (right) |
|
$ 220.52 | |||||
| 9 | WP67006113 | Mount, Handle (Replaces: 67006113) |
|
Immediately | $ 10.76 | ||||
| 10 | 12925404SP | Adapter, Bin (inner) (Replaces: W10163002) |
|
$ 38.84 | |||||
| 11 | WPW10235357 | Bracket/glide Assembly (Replaces: 67006372) |
|
Immediately | $ 283.70 | ||||
| 12 | WPW10235367 | Glide, Upper (Replaces: 67006369) |
|
$ 268.65 | |||||
| 13 | W10826788 | Retainer, Glide (left) (Replaces: 67006367) |
|
$ 49.28 | |||||
| 13 | WP67006368 | Retainer, Glide (right) (Replaces: 67006368) |
|
$ 165.34 | |||||
| 14 | WPW10330991 | Bracket, Door Slide (left) (Replaces: W10122147) |
|
Immediately | $ 140.84 | ||||
| 14 | WPW10330993 | Bracket, Door Slide (right) (Replaces: W10122148) |
|
Immediately | $ 142.36 | ||||
| 15 | 67006373 | Divider, Upper Bin |
|
- |
