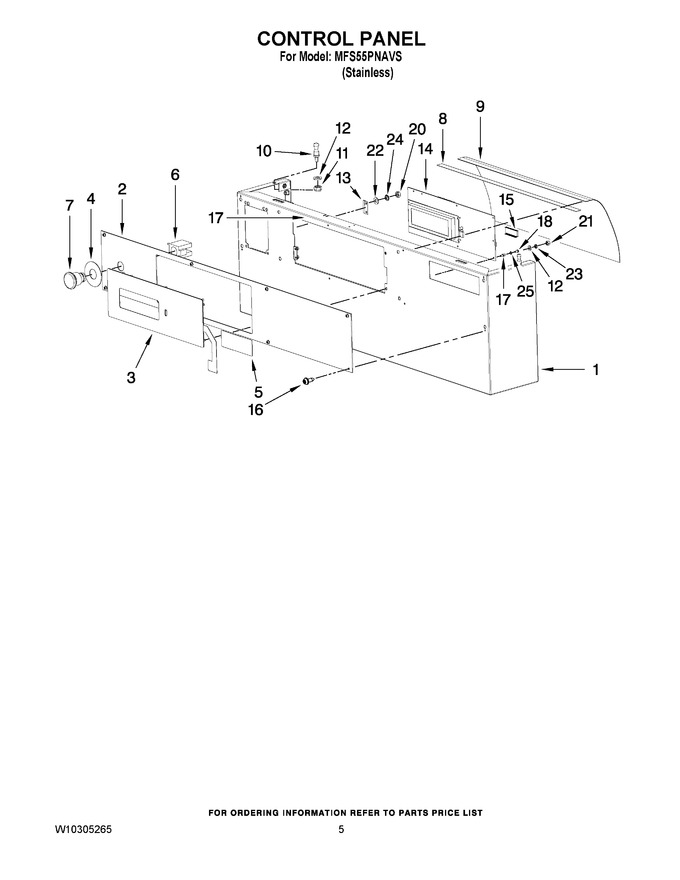

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10286295 | Control Panel |
|
- | |||||
| 2 | W10304857 | Facia Panel |
|
- | |||||
| 3 | 23004133 | Membrane Switch |
|
- | |||||
| 4 | 23002330 | Stop Switch Button |
|
- | |||||
| 5 | W10304858 | Maytag Badge |
|
- | |||||
| 6 | 23004137 | Stop Switch |
|
- | |||||
| 7 | 23004136 | Stop Switch Button |
|
- | |||||
| 8 | 23004126 | Double Sided Tape |
|
- | |||||
| 9 | 23002877 | Plastic Shield |
|
- | |||||
| 10 | 23001332 | Alignment Pin |
|
- | |||||
| 11 | 23003716 | Nut M5 |
|
- | |||||
| 12 | 23001708 | Masher M5.3 |
|
- | |||||
| 13 | 23003871 | Mounting Bracket |
|
- | |||||
| 14 | W10286300 | Microcontrol Board |
|
- | |||||
| 15 | W10304859 | Programming Chip W/software |
|
- | |||||
| 15 | W10286301 | Programming Chip |
|
- | |||||
| 16 | WPW10131119 | Screw M4x13 (Replaces: 23003810) |
|
$ 6.26 | |||||
| 17 | 23004134 | Spacer M3x5x3 |
|
- | |||||
| 18 | 23002869 | Bolt M3x6 |
|
- | |||||
| 20 | 23001014 | Nut M4 |
|
- | |||||
| 21 | 23004486 | Nut M5 |
|
- | |||||
| 22 | 23002438 | Washer M4.3 |
|
- | |||||
| 23 | 23002836 | Washer M5 |
|
- | |||||
| 24 | 23002865 | Lock Washer M3 |
|
- | |||||
| 25 | 23002870 | Lock Washer M4 |
|
- |
