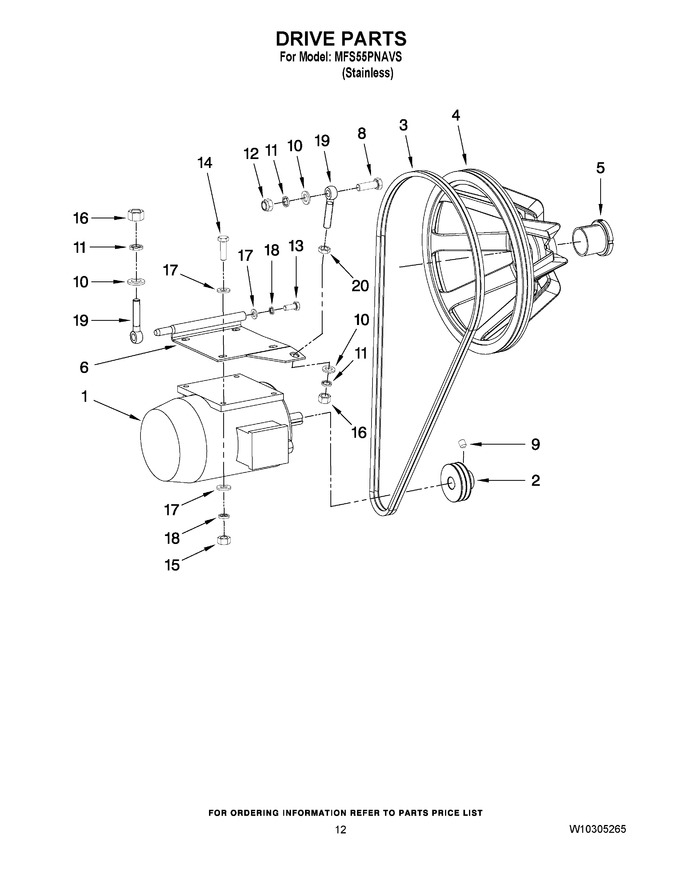

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 23004086 | Drive Motor, 3x380-415v, 1x220x240v, 3x208-240v |
|
- | |||||
| 2 | W10286328 | Motor Pulley |
|
- | |||||
| 3 | 23004342 | V-belt |
|
$ 138.27 | |||||
| 4 | 23003080 | Drum Pulley |
|
- | |||||
| 5 | 23001653 | Drum Pulley Bushing |
|
- | |||||
| 6 | 14227099 | Motor Mtg Plate |
|
- | |||||
| 8 | 23004040 | Bolt M16x50 |
|
- | |||||
| 9 | 23003267 | Pulley Set Screw |
|
- | |||||
| 10 | 23001735 | Washer M17 |
|
- | |||||
| 11 | 23003402 | Washer M17 |
|
- | |||||
| 12 | 23001651 | Locking Nut M16 |
|
- | |||||
| 13 | 23001905 | Bolt M10x25 |
|
- | |||||
| 14 | W10304863 | Bolt M10x40 |
|
- | |||||
| 15 | DC60-50145A | Nut M10 (Replaces: 23001661) |
|
$ 2.39 | |||||
| 16 | 23004281 | Nut M16 |
|
- | |||||
| 17 | 23003788 | Washer M10.5 |
|
- | |||||
| 18 | 23002654 | Washer M10 |
|
- | |||||
| 19 | W10286331 | Eye Bolt M16x90 |
|
- | |||||
| 20 | W10286332 | Nut M16 |
|
- | |||||
| NI | W10286334 | Motor Wire Harness |
|
- |
