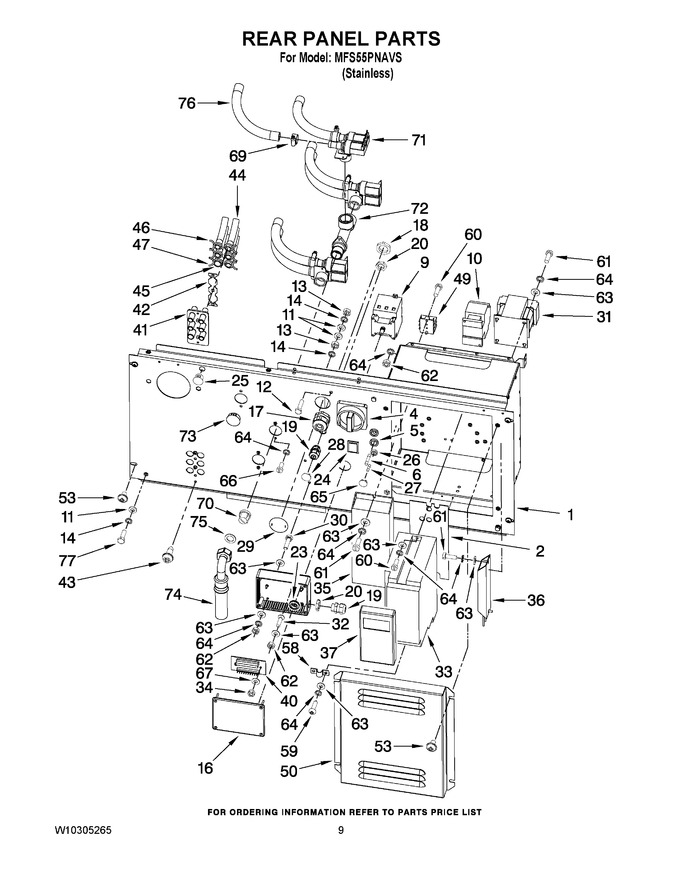

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10286349		Upper Back Panel		Appelez-nous	-
2	W10286350		Inverter Mtg Plate		Appelez-nous	-
4	23003497		Main Switch Knob		Appelez-nous	-
5	23002210		Fuse Holder		Appelez-nous	-
6	WP22001555		Fuse 1a   (Replaces: 22001555)			Immediately	$ 27.33
9	23003500		Main Switch 25a		Appelez-nous	-
10	23003750		Contactor Lc1-d09m7		Appelez-nous	-
11	23002424		Washer M6.4		Appelez-nous	-
12	23002809		Bolt M6x25		Appelez-nous	-
13	23001312		Nut M6		Appelez-nous	-
14	23002425		Lock Washer M6				$ 473.30
16	W10304865		Chemical Signal Box & Cover		Appelez-nous	-
17	23004395		Large Strain Relief M25		Appelez-nous	-
18	23004397		Large Strain Relief Nut M25		Appelez-nous	-
19	23004396		Small Strain Relief M16		Appelez-nous	-
20	23004398		Small Strain Relief Nut M16		Appelez-nous	-
23	23002834		Grommet				$ 2,242.58
24	23001452		Square Plug		Appelez-nous	-
25	23002794		Plug		Appelez-nous	-
26	23001462		Fuse Holder		Appelez-nous	-
27	23002919		Fuse 0.5ax250v		Appelez-nous	-
28	23003785		Plug		Appelez-nous	-
29	23002150		Plug		Appelez-nous	-
30	23004095		Bolt M4x16		Appelez-nous	-
31	W10286352		Transformer		Appelez-nous	-
32	23001468		Bolt M3x12				$ 870.39
33	23004085		Frequency Inverter		Appelez-nous	-
34	8189626		Nut M3		Appelez-nous	-
35	WPW10286354		Rf Filter   (Replaces: W10286354)				$ 573.41
36	23004363		Brake Resistor		Appelez-nous	-
37	WPW10304866		Keb Communication Module   (Replaces: W10304866)				$ 913.08
40	W10286355		Signal Board		Appelez-nous	-
41	W10223169		Chemical Injection Manifold		Appelez-nous	-
42	14227179		Manifold Mtg Plate		Appelez-nous	-
43	WPW10131119		Screw M4x13   (Replaces: W10131119)				$ 6.26
44	23002193		Small Chemical Hose D10/14		Appelez-nous	-
45	W10223170		Large Chemical Hose D14/18		Appelez-nous	-
46	WP596669		Small Hose Clamp D15.5-16   (Replaces: W10286356)			Immediately	$ 7.56
47	WP596669		Large Hose Clamp D18.5-19.5   (Replaces: W10286357)			Immediately	$ 7.56
49	23002959		Electric Heat Terminal Board (optional)		Appelez-nous	-
50	W10286358		Inverter Cover		Appelez-nous	-
53	W10286359		Bolt M6x10		Appelez-nous	-
58	23004094		Clamp		Appelez-nous	-
59	W10286360		Screw St4.2x19		Appelez-nous	-
60	W10295997		Bolt M4x16   (Replaces: 23001089)				$ 6.27
61	23002721		Bolt M4x12		Appelez-nous	-
62	23001014		Nut M4		Appelez-nous	-
63	23002438		Washer M4.3		Appelez-nous	-
64	23002950		Lock Washer M4		Appelez-nous	-
65	505472		Plug		Appelez-nous	-
66	23001361		Bolt M4x10		Appelez-nous	-
67	23003654		Washer M3.2		Appelez-nous	-
69	WP596669		Hose Clamp   (Replaces: 596669)			Immediately	$ 7.56
70	23002922		Filter Screen		Appelez-nous	-
71	23001455		Dual Valve		Appelez-nous	-
72	23002924		Metal T 3/4		Appelez-nous	-
73	23001476		Plug				$ 705.49
74	23001523		Fill Hose		Appelez-nous	-
75	23002921		Hose Washer		Appelez-nous	-
76	23001507		Inlet Hose		Appelez-nous	-
77	23002462		Bolt M6x20				$ 5.14
NI	W10286353		Inverter Comm. Cable (not Shown)		Appelez-nous	-
