Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10286250 Frame Appelez-nous -
2 23002983 Shock Absorber Special Order $ 392.15

3 23002994 Suspension Hook Appelez-nous -
4 23002991 Bolt Special Order $ 225.63

5 23002996 Spring Special Order $ 38.45

6 23002993 Plastic Spring Holder Appelez-nous -
7 23004023 Washer M10 Appelez-nous -
8 W10286255 Shim Appelez-nous -
9 23002995 Spacer Appelez-nous -
10 23002692 Bushing For Suspension Hook Appelez-nous -
11 23002984 Bolt M10x80 Appelez-nous -
12 W10286257 Bolt M10x50 Appelez-nous -
13 23002992 Bushing For Suspension Bolt Appelez-nous -
14 23002356 Nut M10 Appelez-nous -
15 23002280 Nut M6 Appelez-nous -
16 23003766 Nut M8 Appelez-nous -
17 23003788 Washer M10.5 Appelez-nous -
18 W10286260 Washer M10 Appelez-nous -
19 23002424 Washer M6.4 Appelez-nous -
20 23001734 Lock Washer M6 Appelez-nous -
21 W10286261 Foam-seal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

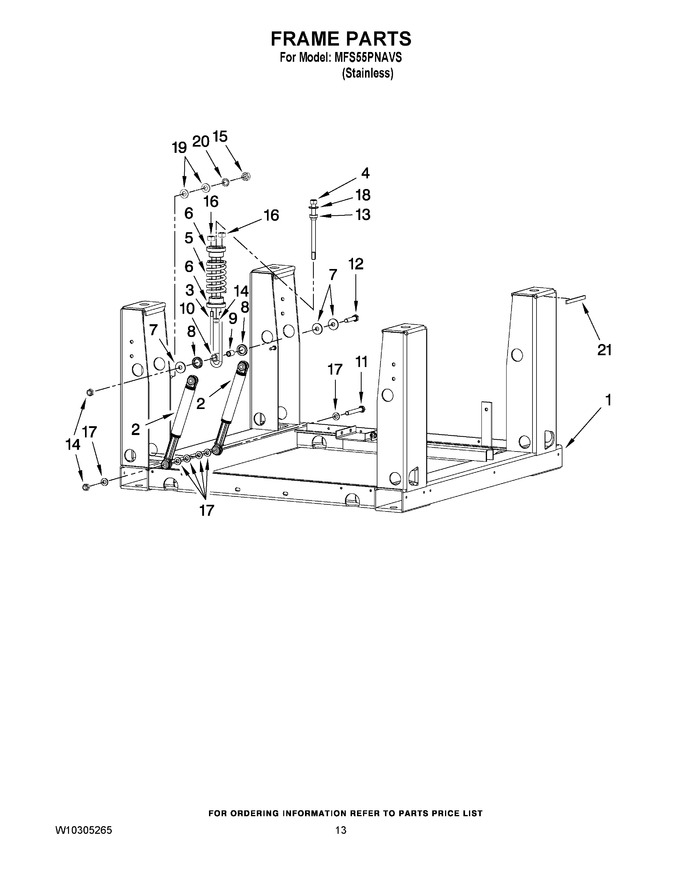

Diagram for MFS55PNAVS
