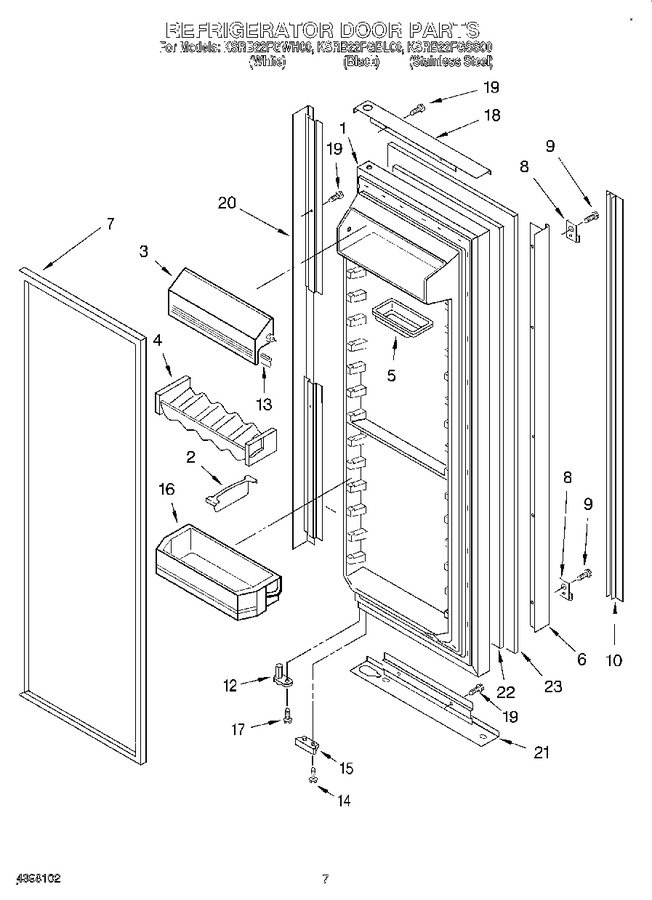

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2186676S		Refrigerator Door (includes No.7) (stainless Steel)		Appelez-nous	-
1	2186676W		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	2186676B		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
2	2195497		Load Lock		Appelez-nous	-
3	2182399		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Tray, Butter		Appelez-nous	-
6	2200179S		Handle (stainless Steel)		Appelez-nous	-
6	2200176B		Handle (black)		Appelez-nous	-
6	2200176W		Handle (white)		Appelez-nous	-
7	2159081		Door Gasket, Magnetic (service) (black)				$ 287.64
7	2159073		Door Gasket, Magnetic (service) (mist Beige)				$ 285.59
8	2186700		Clip, Handle Retainer		Appelez-nous	-
9	WP489478		Screw   (Replaces: 489478)				$ 6.98
10	2186776W		Cover, Screw (white)		Appelez-nous	-
10	2186977S		Cover, Screw (stainless Steel)		Appelez-nous	-
10	2186776B		Cover, Screw (black)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
13	2159124		Gasket, Door Compartment		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 9.78
15	2195950		Bracket, Door Stop				$ 5.84
16	2171063		Shelf Bin (4)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
18	2186723B		Trim, Door (top) (black)		Appelez-nous	-
18	2186785S		Trim, Door (top) (stainless Steel)		Appelez-nous	-
18	2186723W		Trim, Door (top) (white)		Appelez-nous	-
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
20	2186764S		Trim, Door (hinge Side) (stainless Steel)		Appelez-nous	-
20	2186687W		Trim, Door (hinge Side) (white)		Appelez-nous	-
20	2186687B		Trim, Door (hinge Side) (black)		Appelez-nous	-
21	2186783S		Trim, Door (bottom) (stainless Steel)		Appelez-nous	-
21	2186721B		Trim, Door (bottom) (black)		Appelez-nous	-
21	2186721W		Trim, Door (bottom) (white)		Appelez-nous	-
22	2186731		Filler, Panel		Appelez-nous	-
23	2186790S		Panel (stainless Steel)		Appelez-nous	-
23	2186728W		Panel (white)		Appelez-nous	-
23	2186728B		Panel (black)		Appelez-nous	-
