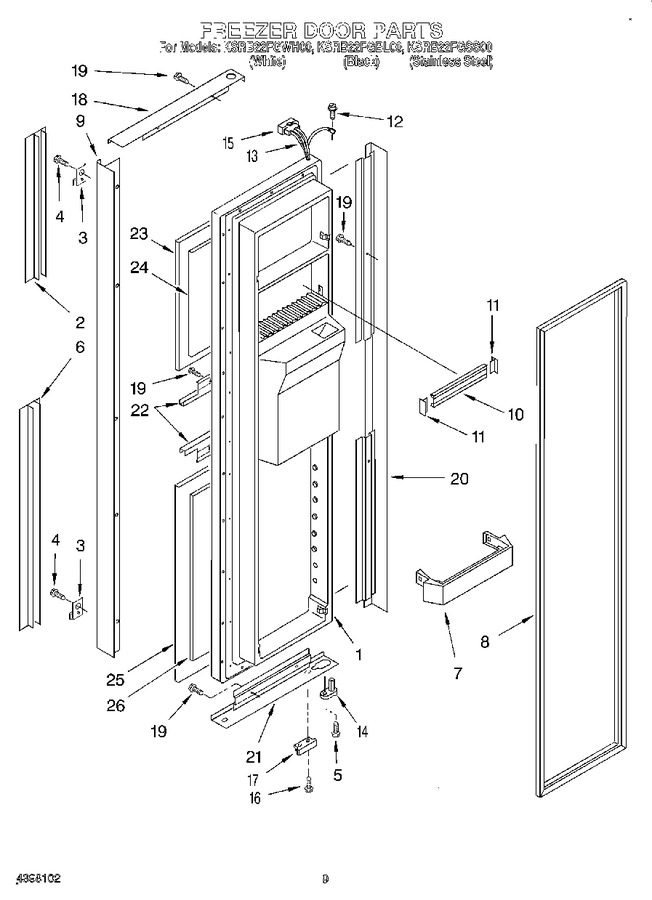

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2186662W | Freezer Door (includes No.8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | 2186662B | Freezer Door (includes No.8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2186662S | Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 2 | 2186774B | Cover, Screw (black) |
|
- | |||||
| 2 | 2186788S | Cover, Screw (stainless Steel) |
|
- | |||||
| 2 | 2186774W | Cover, Screw (white) |
|
- | |||||
| 3 | 2186700 | Clip, Handle Retainer |
|
- | |||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.04 | |||||
| 6 | 2186773W | Cover, Screw (white) |
|
- | |||||
| 6 | 2186787S | Cover, Screw (stainless Steel) |
|
- | |||||
| 6 | 2186773B | Cover, Screw (black) |
|
- | |||||
| 7 | 2171071 | Shelf Bin (4) |
|
- | |||||
| 8 | 2159072 | Door Gasket, Magnetic (service) (mist Beige) |
|
$ 277.37 | |||||
| 8 | 2159080 | Door Gasket, Magnetic (service) (black) |
|
$ 279.35 | |||||
| 9 | 2186693B | Handle (black) |
|
- | |||||
| 9 | 2186770S | Handle (stainless Steel) |
|
- | |||||
| 9 | 2186693W | Handle (white) |
|
- | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2195926) |
|
Immediately | $ 20.80 | ||||
| 11 | WP2156006 | End Cap (Replaces: 2156006) |
|
Immediately | $ 10.96 | ||||
| 12 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 13 | 2198272 | Wire Harness |
|
- | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 5.75 | ||||
| 15 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 21.29 | |||||
| 16 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 | |||||
| 17 | 2195950 | Bracket, Door Stop |
|
$ 5.84 | |||||
| 18 | 2186690B | Trim, Door (top) (black) |
|
- | |||||
| 18 | 2186767S | Trim, Door (top) (stainless Steel) |
|
- | |||||
| 18 | 2186690W | Trim, Door (top) (white) |
|
- | |||||
| 19 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 20 | 2186687B | Trim, Door (hinge Side) (black) |
|
- | |||||
| 20 | 2186687W | Trim, Door (hinge Side) (white) |
|
- | |||||
| 20 | 2186764S | Trim, Door (hinge Side) (stainless Steel) |
|
- | |||||
| 21 | 2186761S | Trim, Door (bottom) (stainless Steel) |
|
- | |||||
| 21 | 2186684B | Trim, Door (bottom) (black) |
|
- | |||||
| 21 | 2186684W | Trim, Door (bottom) (white) |
|
- | |||||
| 22 | 2186701B | Trim, Door (dispenser Top And Bottom) (black) |
|
- | |||||
| 22 | 2186777S | Trim, Door (dispenser Top And Bottom) (stainless Steel) |
|
- | |||||
| 22 | 2186701W | Trim, Door (dispenser Top And Bottom) (white) |
|
- | |||||
| 23 | 2186779S | Panel, Upper (stainless Steel) |
|
- | |||||
| 23 | 2186703W | Panel, Upper (white) |
|
- | |||||
| 23 | 2186703B | Panel, Upper (black) |
|
- | |||||
| 24 | 2186707 | Filler, Panel Upper |
|
- | |||||
| 25 | 2186705B | Panel, Lower (black) |
|
- | |||||
| 25 | 2186781S | Panel, Lower (stainless Steel) |
|
- | |||||
| 25 | 2186705W | Panel, Lower (white) |
|
- | |||||
| 26 | 2186709 | Filler, Panel Lower |
|
- |
