SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front


08 - Unit


09 - Freezer Liner

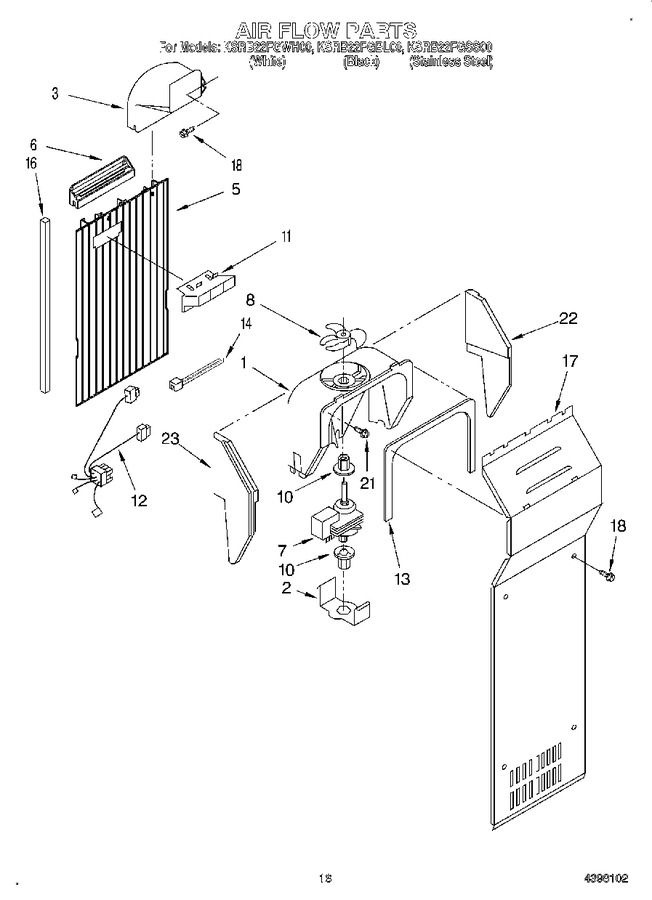

10 - Air Flow


11 - Icemaker


12 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254898		Fan Scroll   (Replaces: 2182119)			Immediately	$ 290.94
2	2155590		Retainer Fan Motor				$ 5.83
3	2161231		Air Scoop				$ 42.67
5	2176071		Air Duct Freezer		Appelez-nous	-
6	2149544		Diffuser, Air Duct				$ 52.53
7	4389144		Fan Motor   (Replaces: 2149299)			Immediately	$ 70.75
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
10	WP2176759		Grommet, Fan (2)   (Replaces: 2176759)				$ 6.99
11	2182146		Duct, Icemaker				$ 88.84
12	2161478		Harness, Fan Evaporator, And Heater, Bi-metal		Appelez-nous	-
13	WP2155789		Gasket Cover   (Replaces: 2155788)				$ 7.01
14	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.11
16	WP2304241		Gasket   (Replaces: 2155783)			Immediately	$ 74.52
17	2155611		Cover, Evaporator		Appelez-nous	-
18	W11233072		Screw   (Replaces: 489355)			Immediately	$ 12.62
21	WP489478		Screw   (Replaces: 489478)				$ 6.98
22	4388358		Support, R.s.   (Replaces: 2161484)				$ 28.04
23	4388358		Support, L.s.   (Replaces: 2155766)				$ 28.04

    View Diagram in Separate Window       Print Part List
