SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Dispenser Front

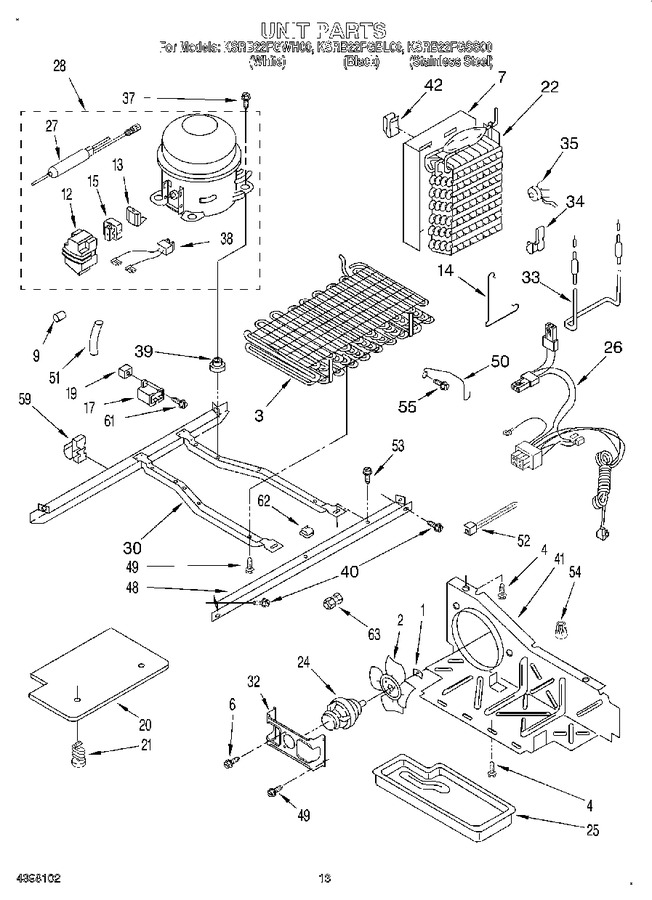

08 - Unit


09 - Freezer Liner


10 - Air Flow


11 - Icemaker


12 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
2	1108179		Fan, Blade				$ 49.54
3	2198175		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
6	681390		Screw   (Replaces: 489099)				$ 11.75
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.56
12	WP2162358		Cover   (Replaces: 2162358)				$ 81.68
13	WP61006294		Overload   (Replaces: 2162218)				$ 103.87
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	2183454		Relay		Appelez-nous	-
17	WP4387764		Capacitor (service Compressor Only)   (Replaces: 4387764)				$ 159.34
19	509812		Screw Grommet		Appelez-nous	-
20	2182057		Unit Cover, Bottom				$ 72.28
21	489396		Clip				$ 9.65
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 305.87
24	W10822259		Motor, Fan   (Replaces: 2176336)			Immediately	$ 199.17
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2194749		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 47.31
28	W10309990		Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order)   (Replaces: 2183453)			Immediately	$ 569.53
28	876765		Tube Kit			Immediately	$ 77.70
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 209.73
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 11.08
33	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 105.64
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 45.69
37	876811		Screw   (Replaces: 489373)				$ 6.68
38	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 7.29
39	876811		Grommet (4)   (Replaces: 1100826)				$ 6.68
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196159)				$ 86.74
42	2155547		Clip, Heat		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	2186496		Guard, Fan		Appelez-nous	-
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 18.27
52	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.11
53	WP489427		Screw   (Replaces: 489427)				$ 6.72
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489478)				$ 6.98
59	2155658		Clip, Wire & Tube		Appelez-nous	-
61	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
62	2200079		Clip, Tube		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 82.22
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 117.64
63	WP4318044		Union   (Replaces: 2196152)				$ 9.32
63	978026		Valve, Access (5/16``)			Immediately	$ 115.28
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
63	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
