Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
2 2174493 Shelf, Top Compartment Appelez-nous -
3 WP2171713 Door, Ice Compartment   (Replaces: 2171713) Special Order $ 78.54

4 940014 Hole Plug Special Order $ 18.33

5 WP3400806 Screw   (Replaces: 8281158) Special Order $ 6.94

6 2215823 Clip, Air Duct (2)   (Replaces: 842534) Special Order $ 9.38

7 2196206 Support, Stud (4) Appelez-nous -
8 WP2196483 Stud Assembly   (Replaces: 2196483) Special Order $ 9.32

9 2176134 Grommet (2) Special Order $ 5.83

10 W10845583 Slide, Container (right Side)   (Replaces: 1119293) Special Order $ 111.53

10 W10845585 Slide, Container (left Side)   (Replaces: 1119237) Special Order $ 119.49

11 WP2174267 Shelf   (Replaces: 2174267) Special Order $ 80.01

12 718257 Screw (4)   (Replaces: 489100) Appelez-nous -
14 2155572 Cover, Wiring Appelez-nous -
15 W11233072 Screw   (Replaces: 489355) In-Stock Immediately $ 12.62

16 W10142289 Screw   (Replaces: 3400893) Special Order $ 8.24

17 2181759 Shelf Track (left Side (3)) Appelez-nous -
17 2181760 Shelf Track (right Side (3)) Appelez-nous -
18 W10759522 Screw   (Replaces: 486298) Special Order $ 6.98

19 W11457217 Switch, Rocker Arm   (Replaces: 1115373) Special Order $ 34.36

20 WP489478 Screw   (Replaces: 489478) Special Order $ 6.98

21 2181763 Basket, Shallow Appelez-nous -
22 2171767 Front, Basket Appelez-nous -
23 2181765 Basket, Square Appelez-nous -
24 2305580K Basket, Front   (Replaces: 2171766) Special Order $ 51.68

25 2181764 Basket, Sloped Appelez-nous -
27 2209674 Bracket, Fill Tube Appelez-nous -
29 2171705 Lens, Light Special Order $ 94.68

30 2196207 Stud, Rear Special Order $ 7.61

32 4387478 Socket, Light   (Replaces: 2162085) In-Stock Immediately $ 99.14

33 8009 Bulb, Light   (Replaces: 527949) In-Stock Immediately $ 16.80


    View Diagram in Separate Window     Print Icon   Print Part List

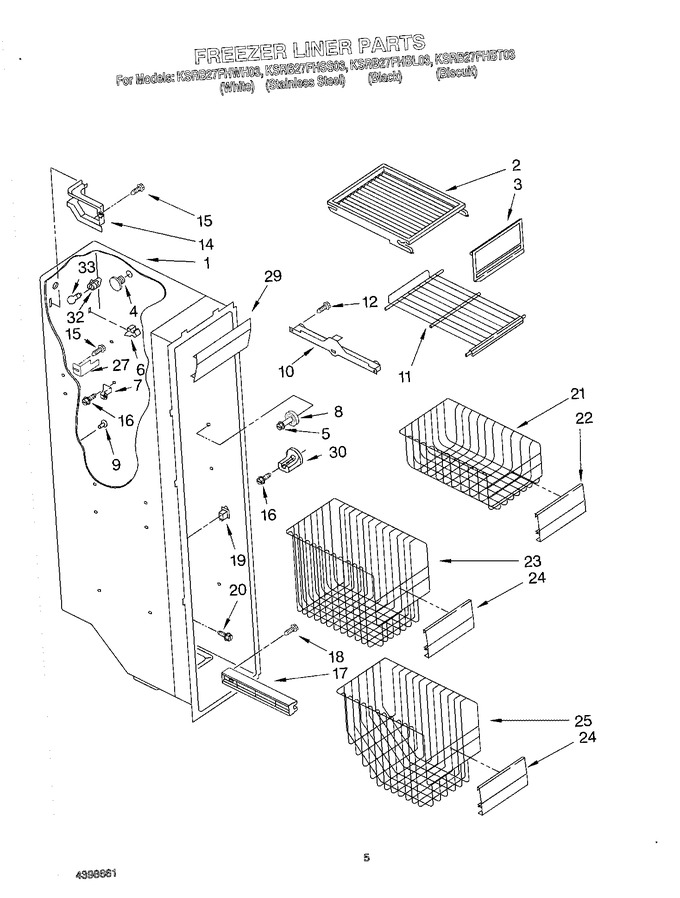

Diagram for KSRB27FHBL03
