SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner

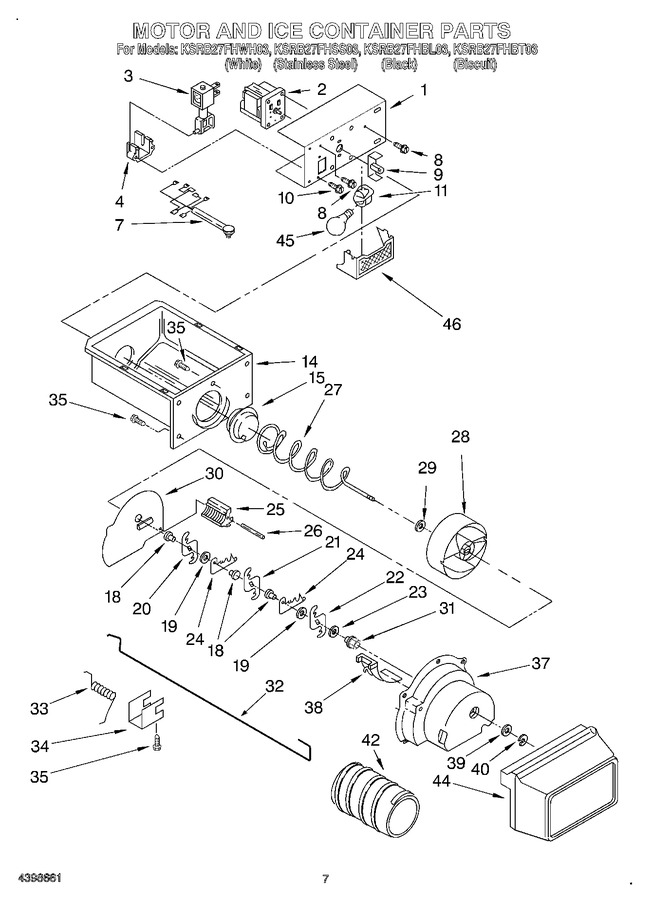

05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Control


11 - Unit


12 - Icemaker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183726		Bracket, Motor		Appelez-nous	-
2	WP2188242		Motor, Dispenser   (Replaces: 2188385)				$ 331.82
3	WP2152713		Solenoid Assembly   (Replaces: 2152713)				$ 214.38
4	W10850503		Guide, Solenoid   (Replaces: 2149100)				$ 9.32
7	2186815		Wiring Assembly, Ice Dispenser		Appelez-nous	-
8	WP489399		Screw   (Replaces: 489399)				$ 6.26
9	WPW10169511		Coupling, Motor   (Replaces: 2205716)				$ 21.01
10	WP489478		Screw   (Replaces: 489478)				$ 6.98
11	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 99.14
14	WPW10670845		Ice Container   (Replaces: 2196091)				$ 170.73
15	W10749708		Coupling, Conveyor   (Replaces: 983668)				$ 23.52
18	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 10.06
19	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 12.66
20	W10278731		Blade, Rotary   (Replaces: 1119006)				$ 77.89
21	W10278732		Blade, Rotary   (Replaces: 1119012)				$ 78.00
22	W10278733		Blade, Rotary   (Replaces: 1119013)				$ 78.00
23	489235		Washer, Plain				$ 8.05
24	1119009		Blade, Fixed (2)				$ 72.21
25	2157405		Block, Blade				$ 19.14
26	489229		Roll Pin				$ 41.54
27	W10422851		Conveyor   (Replaces: 2181955)				$ 149.27
28	4388736		Drum   (Replaces: 2196194)				$ 83.12
29	WP3400912		Washer   (Replaces: 3400912)				$ 7.13
30	W10852691		Floating Baffle   (Replaces: 2171682)			Immediately	$ 29.87
31	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 6.77
32	W11596045		Control Arm   (Replaces: 2155231)				$ 30.44
33	1119020		Spring, Return				$ 16.40
34	1119021		Retainer Clip, Rod				$ 9.40
35	WP488787		Screw   (Replaces: 488886)				$ 9.52
37	WPW10185018		Housing, Crusher   (Replaces: 2180348)				$ 111.99
38	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 6.81
39	489234		Washer, Plain				$ 12.03
40	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 10.95
42	4317870		Sleeve-auger   (Replaces: 2152021)				$ 116.59
44	2204321		Front Cover, Ice Container		Appelez-nous	-
45	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
46	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 82.21

    View Diagram in Separate Window       Print Part List
