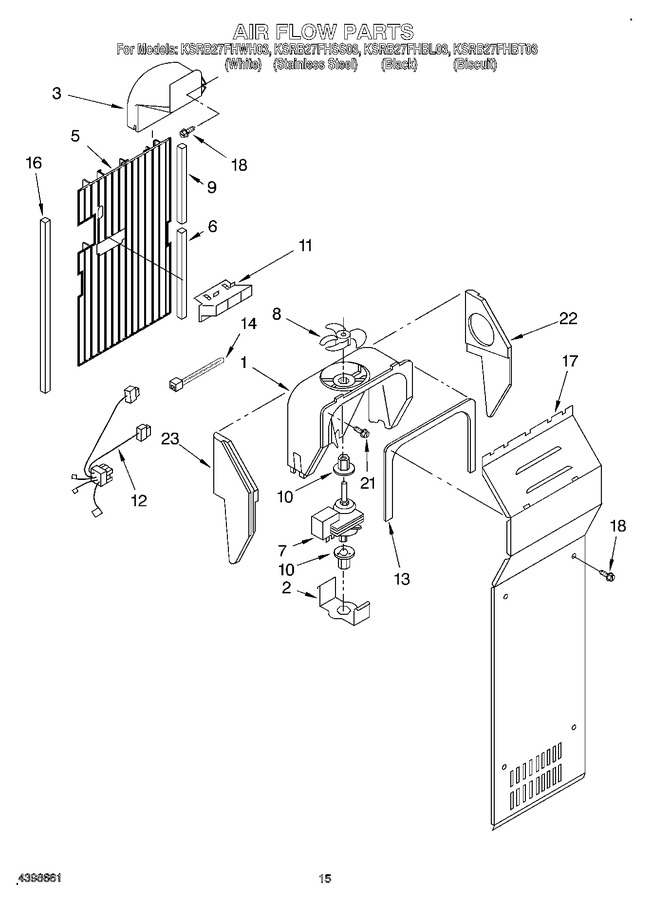

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2182120		Scroll, Fan   (Replaces: 2182120)			Immediately	$ 100.77
2	2155590		Retainer Fan Motor				$ 5.83
3	2161231		Air Scoop				$ 42.67
5	2203593		Air Duct Freezer		Appelez-nous	-
6	WP2209606		Gasket   (Replaces: 2209606)				$ 75.92
7	4389144		Fan Motor   (Replaces: 2149299)			Immediately	$ 70.75
8	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
9	WP2209607		Gasket   (Replaces: 2209607)				$ 73.85
10	WP2176759		Grommet, Fan (2)   (Replaces: 2176759)				$ 6.99
11	2182146		Duct, Icemaker				$ 88.84
12	2186800		Harness, Fan Evaporator, And Heater, Bi-metal		Appelez-nous	-
13	WP2155789		Gasket Cover   (Replaces: 2155789)				$ 7.01
14	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 7.11
16	4388500		Gasket   (Replaces: 2203876)				$ 81.35
17	2203841		Cover, Evaporator		Appelez-nous	-
18	W11233072		Screw   (Replaces: 489355)			Immediately	$ 12.62
21	WP489478		Screw   (Replaces: 489478)				$ 6.98
22	4388358		Support, R.s   (Replaces: 2203595)				$ 28.04
23	4388358		Support, L.s   (Replaces: 2203596)				$ 28.04
