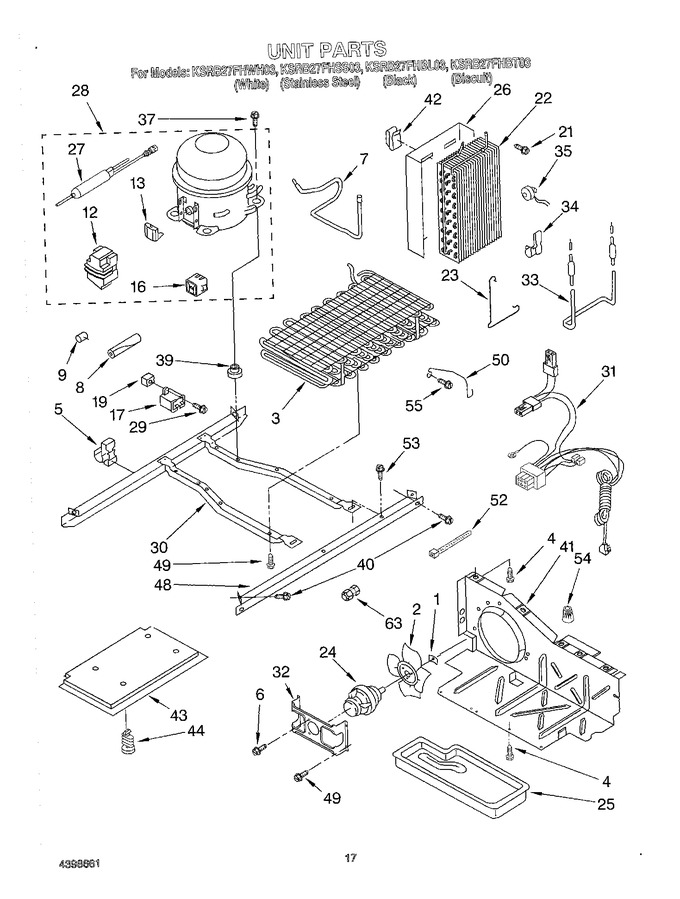

10 - Control


11 - Unit


12 - Icemaker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.04
2	2190685		Blade, Fan				$ 52.00
3	2204242B		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
5	2208280		Clip, Wire & Tube		Appelez-nous	-
6	681390		Screw   (Replaces: 489099)				$ 11.75
7	2204239		Tube, Suction		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 18.27
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.56
12	WP2162358		Cover (service Compressor Only)   (Replaces: 4387731)				$ 81.68
13	WP4387835		Overload ((service, Includes Relay))   (Replaces: 4387835)				$ 151.79
16	2204307		Start-device, Combination (start Relay And Overload) (for Production Compressor Only)		Appelez-nous	-
17	2169137		Capacitor (production)		Appelez-nous	-
17	WP4387764		Capacitor (service)   (Replaces: 4387764)				$ 159.34
19	509812		Screw Grommet		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 6.98
22	WP2188823		Evaporator   (Replaces: 2209611)			Immediately	$ 326.99
23	2161324		Clamp		Appelez-nous	-
24	W10822259		Fan, Motor   (Replaces: 2176336)			Immediately	$ 199.17
25	1110674		Tray, Evaporator		Appelez-nous	-
26	2149294		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 47.31
28	W10309994		Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order)   (Replaces: 2183455)			Immediately	$ 551.61
28	876765		Tube Kit			Immediately	$ 77.70
29	W11693756		Screw   (Replaces: 488687)			Immediately	$ 12.65
30	2304904		Unit Mounting Frame   (Replaces: 2157396)		Appelez-nous	-
31	2188346		Unit, Harness		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 11.08
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 81.63
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 45.69
37	489387		Screw		Appelez-nous	-
39	W11661108		Grommet (4)   (Replaces: 2183042)				$ 13.04
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 86.74
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2206281		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 9.65
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 72.58
49	488624		Screw		Appelez-nous	-
50	2186495		Guard, Fan		Appelez-nous	-
52	WPW10339879		Strap   (Replaces: 2172840)				$ 7.11
53	WP489427		Screw   (Replaces: 489427)				$ 6.72
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw   (Replaces: 488649)				$ 19.04
63	876764		Valve, Access(3/16``)			Immediately	$ 82.22
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 117.64
63	WP4318044		Union   (Replaces: 2196152)				$ 9.32
63	978026		Valve, Access (5/16``)			Immediately	$ 115.28
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
