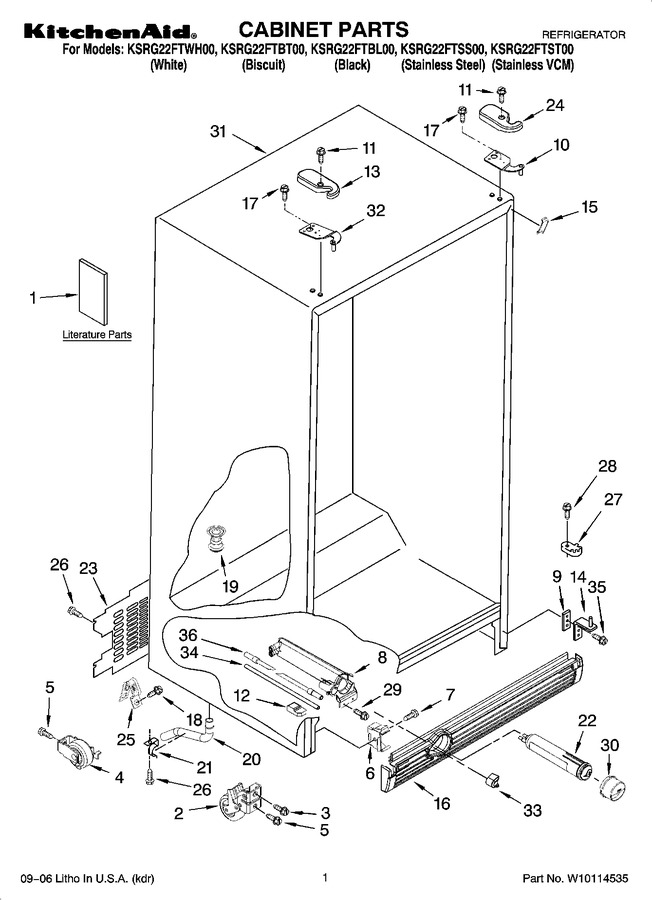

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Air Flow Parts


04 - Freezer Liner Parts


05 - Refrigerator Shelf Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2318581		Use & Care Guide		Appelez-nous	-
1	2255385		Service & Wiring Sheet		Appelez-nous	-
1	2318969		Energy Label		Appelez-nous	-
1	2220407		Modular Icemaker Service Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 10.69
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 36.15
5	WP489427		Screw   (Replaces: 489427)				$ 6.72
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 6.95
7	WP489128		Screw   (Replaces: 488500)				$ 9.79
8	WPW10121138		Housing, Water Filter   (Replaces: 2260507)			Immediately	$ 101.62
9	2209697		Shim (2)				$ 41.25
10	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 88.40
11	WP8281227		Screw   (Replaces: 8281227)				$ 9.40
12	2260519		Block, Housing Support		Appelez-nous	-
13	WP2203407W		Hinge Cover (white)   (Replaces: 2203407W)				$ 18.68
13	WP2203407B		Hinge Cover (black)   (Replaces: 2203407B)				$ 17.57
13	2203407T		Hinge Cover (biscuit)		Appelez-nous	-
14	8201707		Hinge Bottom (2)   (Replaces: 2304322)				$ 80.01
15	2304846		Filler, Wrapper (white)		Appelez-nous	-
15	2304849		Filler, Wrapper (biscuit)		Appelez-nous	-
15	2304848		Filler, Wrapper (black)		Appelez-nous	-
16	2260501T		Grille (biscuit)		Appelez-nous	-
16	WPW10283955		Grille (white)   (Replaces: 2260501W)				$ 107.24
16	2260501B		Grille (black)		Appelez-nous	-
17	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
19	W11566763		Drain Fitting   (Replaces: 940139)			Immediately	$ 45.81
20	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 28.20
21	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 9.67
22	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
23	WP2188756		Cover, Unit   (Replaces: 2200455)				$ 127.50
24	2203408T		Hinge Cover (biscuit)		Appelez-nous	-
24	WP2203408B		Hinge Cover (black)   (Replaces: 2203408B)				$ 16.77
24	WP2203408W		Hinge Cover (white)   (Replaces: 2203408W)				$ 18.87
25	549193		Clamp-service Cord				$ 12.05
26	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
27	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 4.89
28	WP489483		Screw   (Replaces: 489483)				$ 9.78
29	WP489500		Screw   (Replaces: 489500)				$ 7.00
30	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260502B)			Immediately	$ 25.43
30	2260502T		Cap, Water Filter (biscuit)		Appelez-nous	-
30	WP2260518W		Cap, Water Filter (white)   (Replaces: 2260502W)			Immediately	$ 28.71
32	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 85.97
33	2260503W		Button, Water Filter (white)			Immediately	$ 30.74
33	WP2260503B		Button, Water Filter (biscuit)   (Replaces: 2260503T)				$ 65.50
33	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 65.50
34	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 103.99
35	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 26.18
36	WP2304697		Tube, Filter Inlet   (Replaces: 2304697)				$ 123.83
