SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Air Flow Parts


04 - Freezer Liner Parts


05 - Refrigerator Shelf Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Icemaker Parts

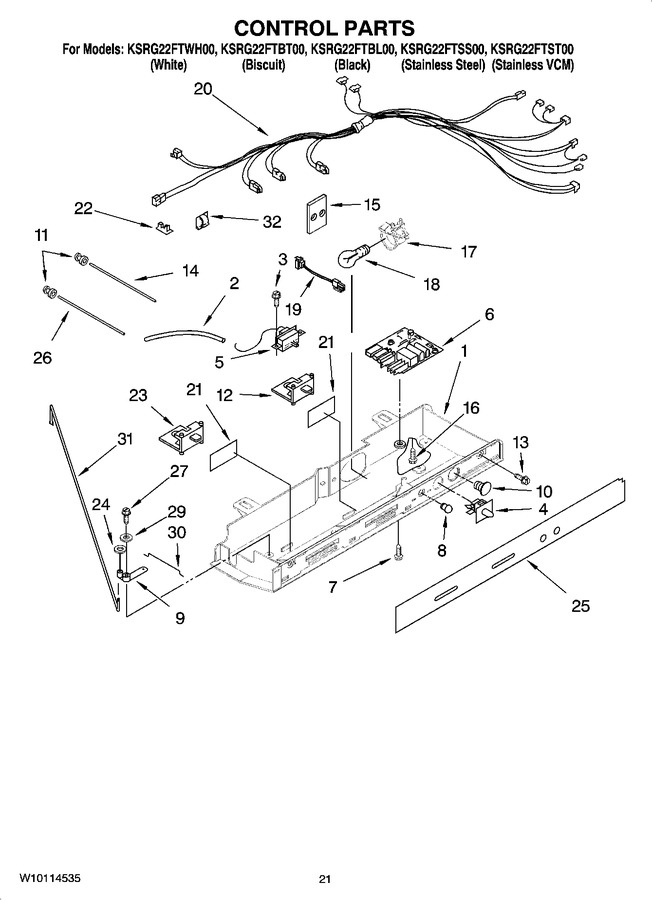

12 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8201785		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2196001)				$ 7.16
3	2006254		Screw (3)   (Replaces: 489214)				$ 11.82
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 36.36
5	WP2315562		Thermostat Assembly   (Replaces: 2315562)			Immediately	$ 95.56
6	WPW10366605		Electronic Control   (Replaces: 2303822)			Immediately	$ 248.65
7	489392		Screw (2)   (Replaces: 489398)				$ 12.02
8	2200096		Cover, Light Lens				$ 64.10
9	2161306		Pivot Arm				$ 9.65
10	940014		Hole Plug				$ 18.33
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 19.10
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 6.90
14	2179920		Light, Bar				$ 37.08
15	2172931		Heat Shield				$ 63.34
16	WP488488		Screw (2)   (Replaces: 489290)				$ 6.91
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 99.14
18	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 10.17
19	W10853646		Harness, Indicator Light   (Replaces: 2213462)				$ 112.11
20	2311632		Harness, Control Box   (Replaces: 2212237)				$ 149.36
21	2175513		Window		Appelez-nous	-
22	1115375		Clip, Wiring				$ 11.15
23	2181741		Slide, Air Control				$ 81.44
24	489391		Fastner, Push-on				$ 7.52
25	2318958		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar		Appelez-nous	-
27	627068		Screw				$ 10.91
29	489203		Washer, Spring		Appelez-nous	-
30	2161307		Connecting Rod (short)		Appelez-nous	-
31	2161308		Connecting Rod (long)				$ 154.90
32	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 6.98
	1117510		Torx Key				$ 5.84
	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	8171357		Paint, Pressurized Spray (12 Oz.) (graphite)				$ 74.08
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
	80051		Paint, Touch-up (1/2oz.) (graphite)				$ 7.64
	799340		Paint, Pressurized Spray (12 Oz.) Paint, Bulk (1 Qt.) (black)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	8171358		Paint, Bulk (1qt.) (graphite)		Appelez-nous	-
	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 10.96
	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	833938		Kit, Terminal Connector				$ 7.26
	8201806		Previous Architect Series Handle Kit (stainless Steel)		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 156.56
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	350942		Paint, Pressurized Spray (12 Oz.) (primer, White)				$ 80.69
	285006		Paint, Pressurized Spray (12 Oz.) (black)   (Replaces: 350939)			Immediately	$ 51.34

    View Diagram in Separate Window       Print Part List
