SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Air Flow Parts


04 - Freezer Liner Parts


05 - Refrigerator Shelf Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts

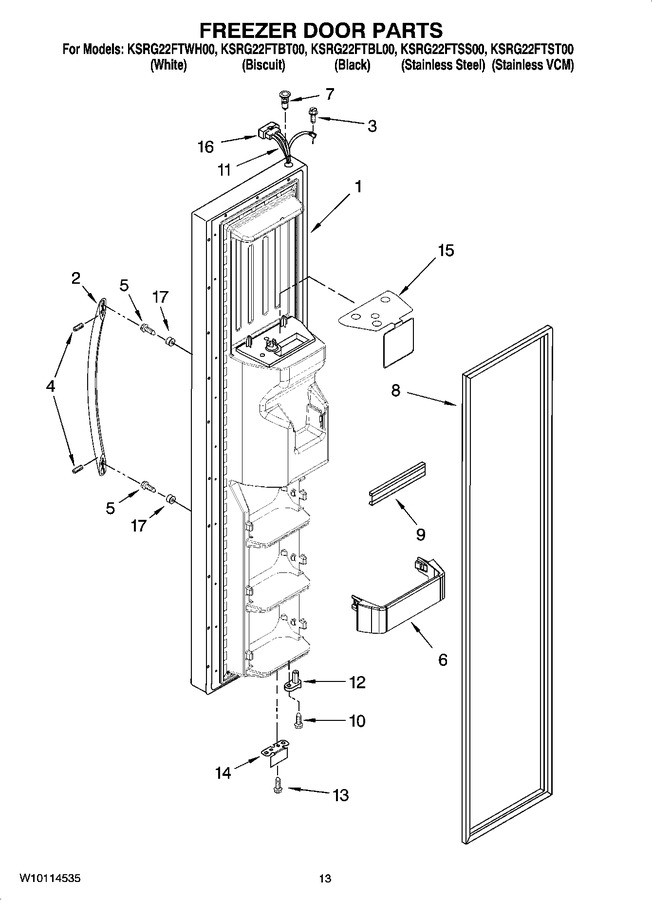

08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2318956T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2318956B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2318957S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2318956LG		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Vcm)		Appelez-nous	-
1	2318956W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2319727W		Handle (includes 4) (white)				$ 106.80
2	2319727T		Handle (includes 4) (biscuit)		Appelez-nous	-
2	2319727B		Handle (includes 4) (black)				$ 109.87
2	2319727S		Handle (includes 4) (stainless Steel)				$ 133.96
3	WP3400906		Screw   (Replaces: 489000)				$ 7.06
4	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 7.09
4	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 14.21
5	WP488163		Screw   (Replaces: 488208)				$ 6.79
6	2171071K		Trivet, Shelf (3)		Appelez-nous	-
7	2301049		Thimble-top (for Stainless Steel Model)				$ 75.42
7	WP2182181		Thimble, Top (for White, Black, Biscuit And Stainless Vcm Models)   (Replaces: 2182181)				$ 6.98
8	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 279.35
8	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 277.37
9	WPW10307490		Trim, Door Shelf   (Replaces: 2212375)			Immediately	$ 20.80
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
11	2207213		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
13	WP489483		Screw   (Replaces: 489420)				$ 9.78
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 36.03
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 36.03
15	2304896		Safety Barrier		Appelez-nous	-
16	WP2154473		Connector   (Replaces: 2154473)				$ 21.29
17	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 7.66

    View Diagram in Separate Window       Print Part List
