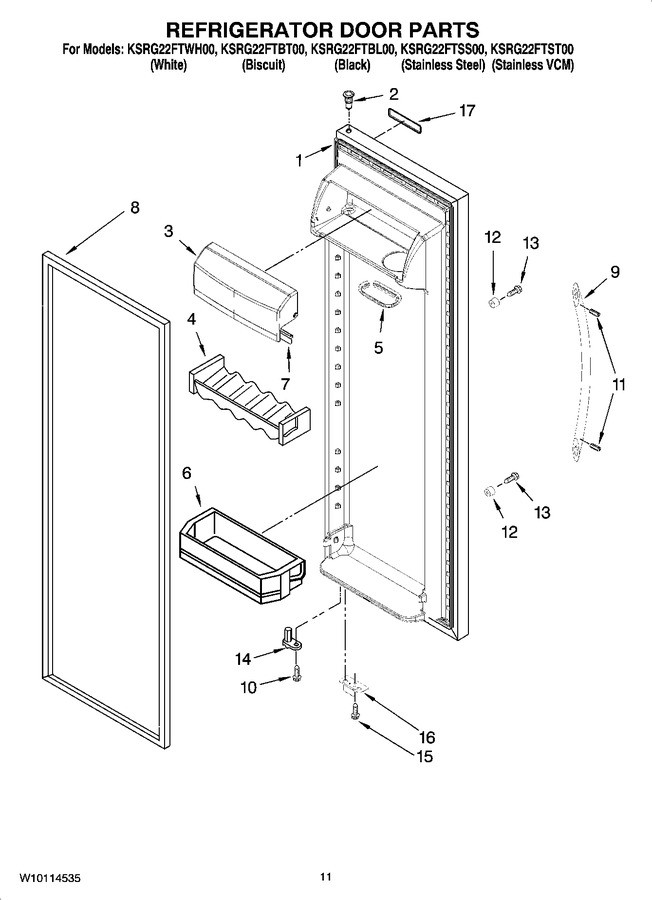

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301188W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
1	2301188T		Refrigerator Door (includes Item 8) (biscuit)		Appelez-nous	-
1	2301188B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
1	2301188S		Refrigerator Door (includes Item 8) (stainless Steel)		Appelez-nous	-
1	2301188LG		Refrigerator Door (includes Item 8) (stainless Vcm)		Appelez-nous	-
2	WP2182181		Thimble, Top (for White, Black, Biscuit And Stainless Vcm Models)   (Replaces: 2308091)				$ 6.98
2	2308050		Thimble-top (for Stainless Steel Model)		Appelez-nous	-
3	2301486		Door, Compartment		Appelez-nous	-
4	2193409K		Beverage Holder		Appelez-nous	-
5	2165792K		Dish, Butter				$ 9.72
6	2171063K		Door Bin (4)				$ 41.12
7	2159124		Gasket		Appelez-nous	-
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 285.59
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 287.64
9	2319727B		Handle (includes 11) (black)				$ 109.87
9	2319727W		Handle (includes 11) (white)				$ 106.80
9	2319727T		Handle (includes 11) (biscuit)		Appelez-nous	-
9	2319727S		Handle (includes 11) (stainless Steel)				$ 133.96
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
11	W11366418		Set Screw (chrome)   (Replaces: W10010140)			Immediately	$ 14.21
11	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 7.09
12	WPW10170540		Stud   (Replaces: 2219698)			Immediately	$ 7.66
13	WP488163		Screw   (Replaces: 488208)				$ 6.79
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
15	WP489483		Screw   (Replaces: 489420)				$ 9.78
16	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 36.03
16	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 36.03
17	W10046610		Nameplate (gray)				$ 33.40
17	WPW10243393		Nameplate (white)   (Replaces: W10046670)				$ 59.99
17	W10046700		Nameplate (biscuit)		Appelez-nous	-
17	WPW10243392		Nameplate (black)   (Replaces: W10046640)				$ 63.17
