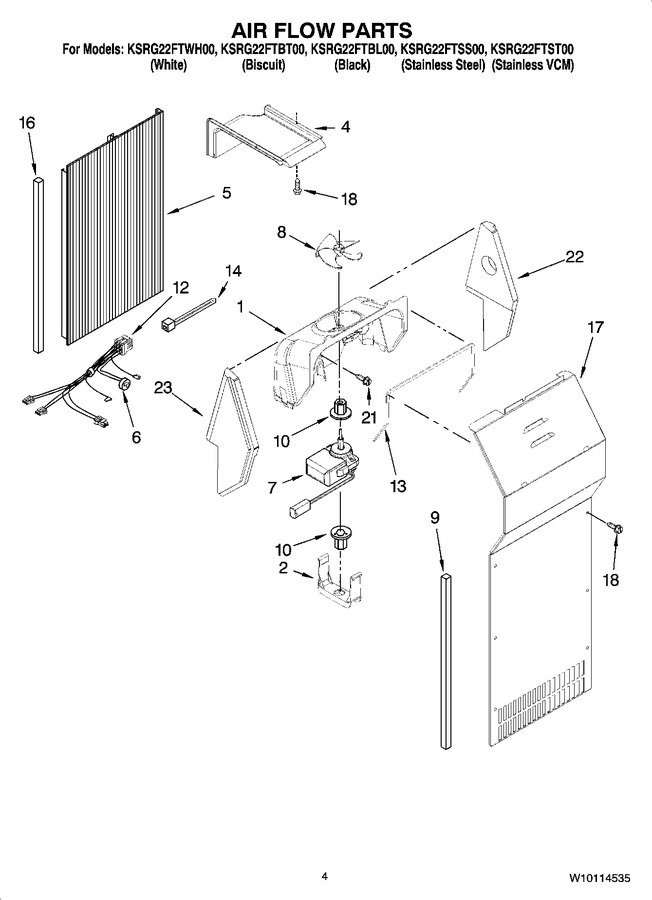

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11254898 | Fan Scroll (Replaces: 2182119) |
|
Immediately | $ 290.94 | ||||
| 2 | 2155590 | Retainer Fan Motor |
|
$ 5.83 | |||||
| 4 | 2313359 | Air Duct, Upper |
|
$ 94.47 | |||||
| 5 | 2212313 | Air Duct Freezer |
|
- | |||||
| 6 | WPW10225581 | Bi-metal, Defrost (Replaces: 2319914) |
|
Immediately | $ 45.69 | ||||
| 7 | WP2315549 | Fan Motor (Replaces: 2315549) |
|
Immediately | $ 224.87 | ||||
| 8 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 9 | WP2304241 | Gasket, Evaporator Cover (2) (Replaces: 2304241) |
|
Immediately | $ 74.52 | ||||
| 10 | WP2176759 | Fan Grommet (2) (Replaces: 2176759) |
|
$ 6.99 | |||||
| 12 | 2310237 | Harness, Fan Evaporator (includes 6) |
|
$ 114.77 | |||||
| 13 | WP2155789 | Gasket, Fan Scroll (Replaces: 2155788) |
|
$ 7.01 | |||||
| 14 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 7.11 | |||||
| 16 | 4388500 | Gasket (Replaces: 2203875) |
|
$ 81.35 | |||||
| 17 | 2304908 | Cover, Evaporator (includes 9) |
|
- | |||||
| 18 | 4389654 | Screw (Replaces: 8281159) |
|
$ 12.50 | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 22 | 4388358 | Support, R.s (Replaces: 2203595) |
|
$ 28.04 | |||||
| 23 | 4388358 | Support, L.s (Replaces: 2203596) |
|
$ 28.04 |
