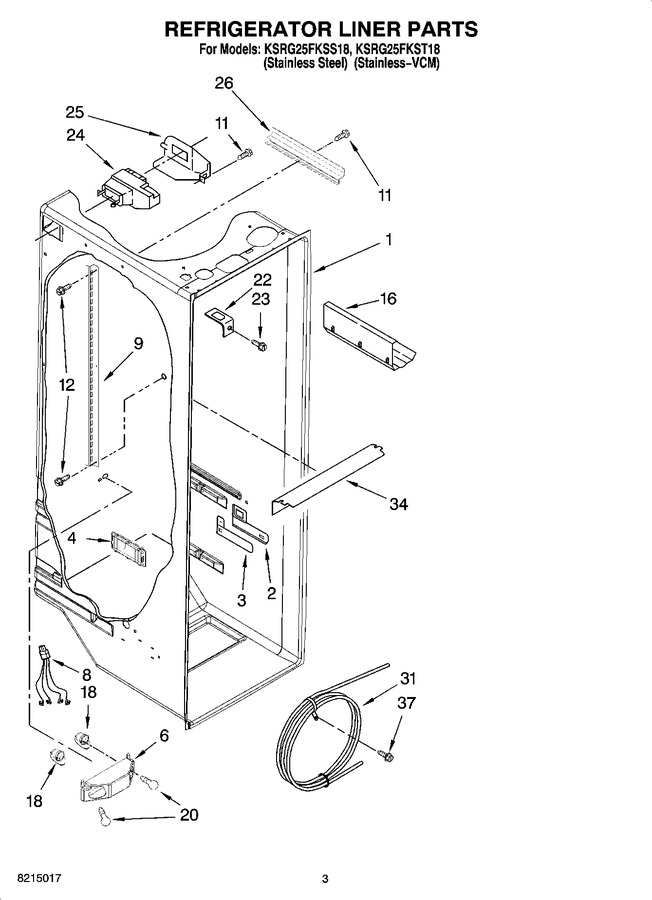

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2255612 | Escutcheon, Meat Pan Control |
|
- | |||||
| 3 | 2301339 | Slide Meat Pan Control |
|
- | |||||
| 4 | 2257741 | Louver |
|
- | |||||
| 6 | 2256035 | Bracket, Dual Crisper |
|
$ 62.54 | |||||
| 8 | 2311637 | Wire Harness, Dual Crisper (Replaces: 2256037) |
|
$ 126.21 | |||||
| 9 | 2319866 | Ladder, Shelf (2) |
|
$ 22.16 | |||||
| 11 | W10759522 | Screw (2) (Replaces: W10004810) |
|
$ 6.98 | |||||
| 12 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 16 | W10777924 | Rack, Wine & Egg (Replaces: 2179404) |
|
$ 21.24 | |||||
| 18 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 20 | W11679940 | Light Bulb (Replaces: 2255743) |
|
Immediately | $ 10.17 | ||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 30.94 | |||||
| 23 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 6.91 | |||||
| 24 | WPW10151375 | Air Diffuser Assembly (Replaces: 2209754) |
|
$ 117.95 | |||||
| 25 | 2152019 | Air Diffuser Cover |
|
$ 77.43 | |||||
| 26 | 2150331 | Cover, Conduit |
|
$ 21.96 | |||||
| 31 | WP2256126 | Reservoir (Replaces: 2217199) |
|
$ 151.97 | |||||
| 34 | 2209769 | Light Lens |
|
- | |||||
| 37 | 488280 | Screw |
|
- |
