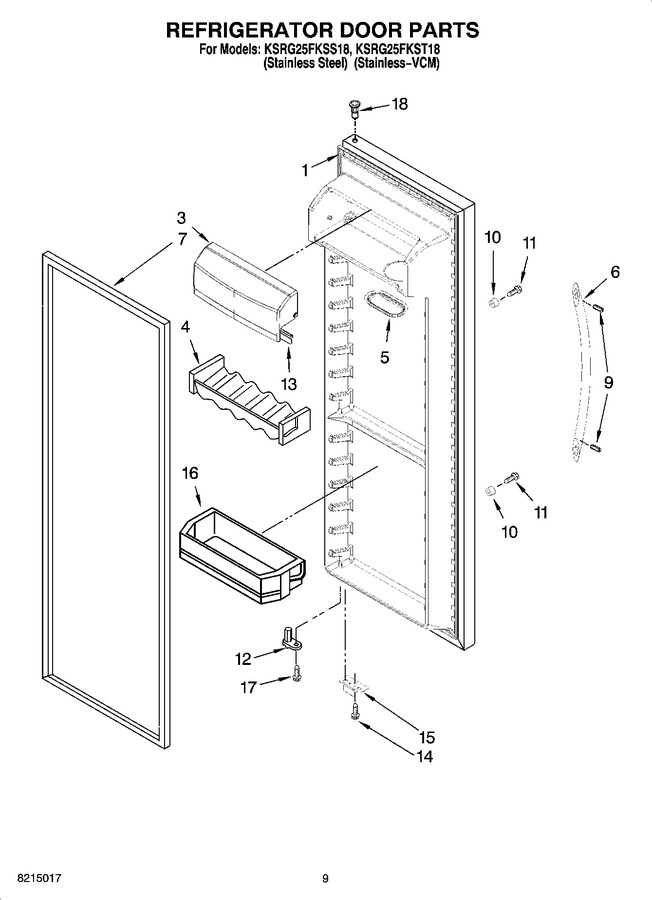

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2301184LG		Refrigerator Door (includes 7) (stainless-vcm)		Appelez-nous	-
1	2301184S		Refrigerator Door (includes 7) (stainless Steel)		Appelez-nous	-
3	2301486		Door, Compartment		Appelez-nous	-
4	2193409K		Beverage Holder		Appelez-nous	-
5	2165792K		Butter Dish				$ 9.72
6	2304832SK		Handle (stainless Steel)		Appelez-nous	-
7	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 226.34
9	W11366418		Screw   (Replaces: W10010140)			Immediately	$ 14.21
10	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 7.66
11	WP488163		Screw   (Replaces: 488208)				$ 6.79
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
13	2159124		Gasket		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 9.78
15	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 36.03
16	2171063K		Shelf Bin (4)				$ 41.12
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
18	WP2182181		Thimble, Top (for Stainless Vcm Model)   (Replaces: 2308091)				$ 6.98
18	2308050		Thimble-top (for Stainless Steel Model)		Appelez-nous	-
