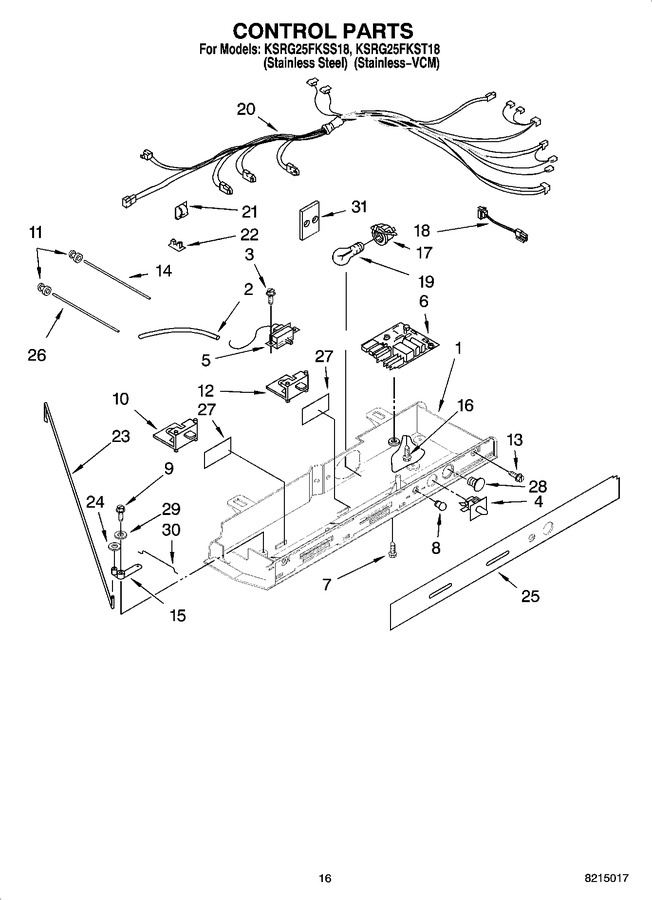

Diagram for 10 - Control Parts
10 - Control Parts

Diagram for 11 - Unit Parts
11 - Unit Parts

Diagram for 12 - Icemaker Parts, Optional Parts (not Included)
12 - Icemaker Parts, Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8201785 Control Box Appelez-nous -
2 WP2196003 Tube Barrier, Thermostat   (Replaces: 2196001) Special Order $ 7.16

3 2006254 Screw (3)   (Replaces: 489214) Special Order $ 11.82

4 WP2149705 Light Switch   (Replaces: 2149705) In-Stock Immediately $ 36.36

5 WP2315562 Thermostat Assembly   (Replaces: 2315562) In-Stock Immediately $ 95.56

6 WPW10366605 Electronic Control   (Replaces: 2303822) In-Stock Immediately $ 248.65

7 489392 Screw (2)   (Replaces: 489398) Special Order $ 12.02

8 2200096 Cover, Light Lens Special Order $ 64.10

9 627068 Screw Special Order $ 10.91

10 2181741 Slide, Air Control Special Order $ 81.44

11 2172906 Grommet, Light Bar Appelez-nous -
12 2161466 Slide, Thermostat Special Order $ 19.10

13 WPW10141645 Screw (2)   (Replaces: 489084) Special Order $ 6.90

14 2179920 Light Bar (rc) Special Order $ 37.08

15 2161306 Arm, Pivot Special Order $ 9.65

16 WP488488 Screw (2)   (Replaces: 489290) Special Order $ 6.91

17 4387478 Light Socket   (Replaces: 2162085) In-Stock Immediately $ 99.14

18 W10853646 Harness, Indicator Light   (Replaces: 2213462) Special Order $ 112.11

19 W11679940 Light Bulb   (Replaces: 2255743) In-Stock Immediately $ 10.17

20 2311632 Control Box Harness   (Replaces: 2212237) Special Order $ 149.36

21 WP1115374 Clip, Wiring   (Replaces: 1115374) Special Order $ 6.98

22 1115375 Clip, Wiring Special Order $ 11.15

23 2161308 Connecting Rod Special Order $ 154.90

24 489391 Fastner, Push-on Special Order $ 7.52

25 2255616 Escutcheon, Control Box Appelez-nous -
26 2179921 Light Bar (fc) Appelez-nous -
27 2175513 Window Appelez-nous -
28 940014 Hole Plug Special Order $ 18.33

29 489203 Spring Washer Appelez-nous -
30 2161307 Connecting Rod (short) Appelez-nous -
31 2172931 Heat Shield Special Order $ 63.34


    View Diagram in Separate Window     Print Icon   Print Part List
