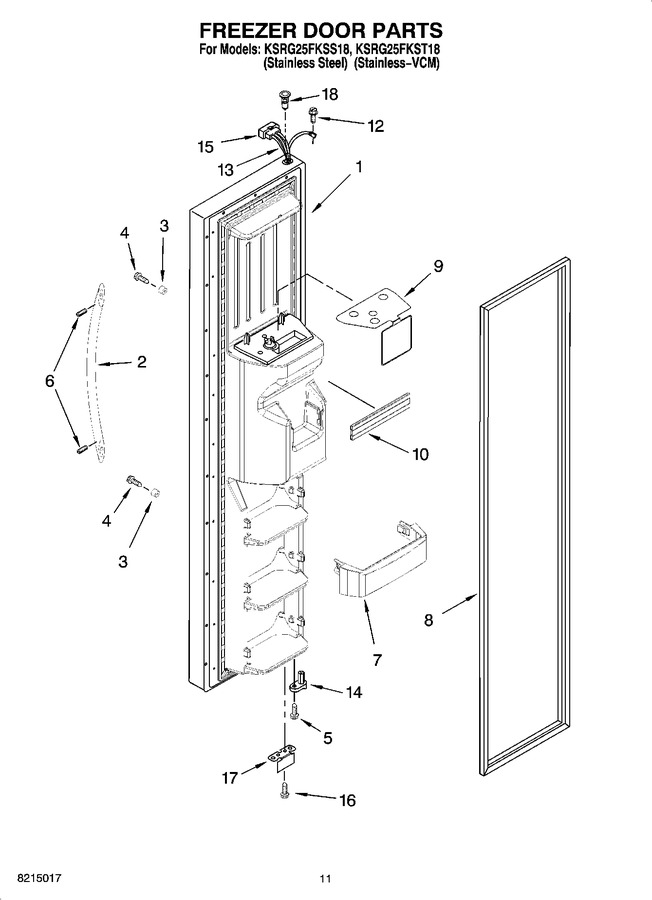

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2315733LG		Freezer Door (includes 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
1	2315733SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
2	2304832SK		Handle (stainless Steel)		Appelez-nous	-
3	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 7.66
4	WP488163		Screw   (Replaces: 488208)				$ 6.79
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
6	W11366418		Screw   (Replaces: W10010140)			Immediately	$ 14.21
7	2171070K		Shelf Bin (3)				$ 39.09
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 284.99
9	2304895		Safety Barrier		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 20.80
12	WP489128		Screw   (Replaces: 488500)				$ 9.79
13	2206178		Wire Harness				$ 36.28
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 5.75
15	WP2154473		Connector   (Replaces: 2154473)				$ 21.29
16	WP489483		Screw   (Replaces: 489420)				$ 9.78
17	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 36.03
18	WP2182181		Thimble-top (for Stainless Vcm Model)   (Replaces: 2182181)				$ 6.98
18	2301049		Thimble-top (for Stainless Steel Model)				$ 75.42
