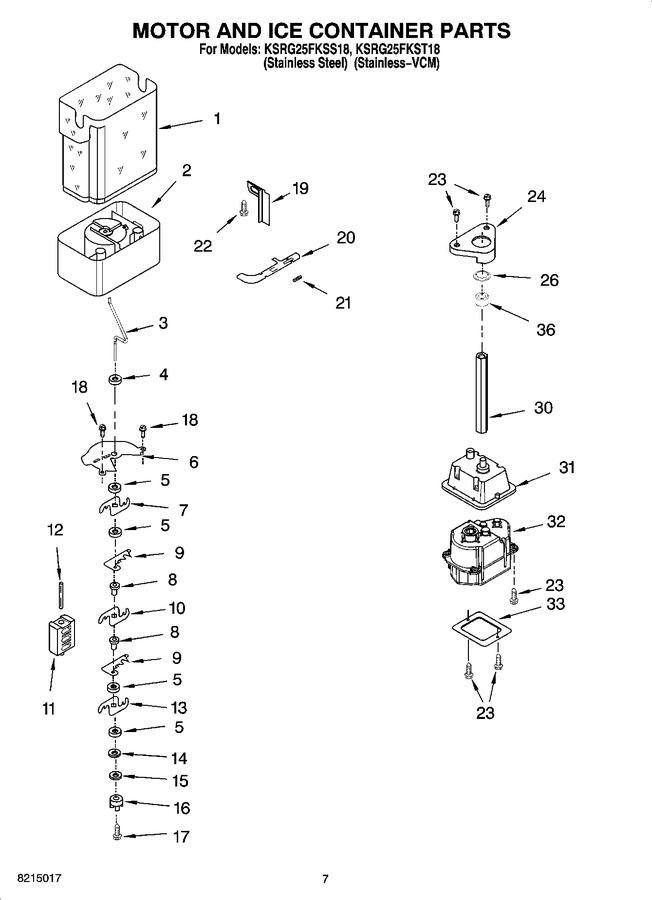

Diagram for 12 - Icemaker Parts, Optional Parts (not Included)
12 - Icemaker Parts, Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP2198573 Ice Bin   (Replaces: 2198573) In-Stock Immediately $ 228.67

2 2255580 Crusher Bin Appelez-nous -
3 2258222 Auger Appelez-nous -
4 2258220 Blade, Stirring Special Order $ 8.02

5 WP1119007 Spacer, Flat (6)   (Replaces: 1119007) Special Order $ 12.66

6 2255460 Cover, Crusher Special Order $ 22.88

7 W10278733 Blade, Rotary   (Replaces: 2257024) Special Order $ 78.00

8 WP1119005 Spacer, Step (2)   (Replaces: 1119005) Special Order $ 10.06

9 2257020 Blade, Fixed Special Order $ 59.91

10 W10278732 Blade, Rotary   (Replaces: 2257023) Special Order $ 78.00

11 2198602 Block, Blade Appelez-nous -
12 489229 Roll Pin Special Order $ 41.54

13 W10278731 Blade, Rotary   (Replaces: 2257022) Special Order $ 77.89

14 489235 Washer, Plain Special Order $ 8.05

15 WP2198661 Washer, Coupling   (Replaces: 2198661) Special Order $ 9.81

16 W11629923 Coupling   (Replaces: 2188918) Special Order $ 30.27

17 WP8281164 Screw   (Replaces: 8281164) Special Order $ 9.71

18 WP3400065 Screw   (Replaces: 3400065) In-Stock Immediately $ 6.97

19 WP2315403 Button, Bin   (Replaces: 2301345) Special Order $ 29.49

20 2212371 Latch, Bin Appelez-nous -
21 WP2198608 Spring, Latch   (Replaces: 2198608) Special Order $ 6.47

22 2198671 Screw Special Order $ 9.36

23 WP8281163 Screw   (Replaces: 8281163) In-Stock Immediately $ 9.17

24 WP2188919 Holder   (Replaces: 2188919) Special Order $ 6.47

26 WP2198628 Seal   (Replaces: 2198628) In-Stock Immediately $ 10.77

30 WP2188917 Drive Shaft   (Replaces: 2188916) Special Order $ 90.16

31 2256154 Enclosure, Motor Special Order $ 49.78

32 2315544 Dispenser, Motor Appelez-nous -
33 2212305 Cover Appelez-nous -
36 WP2315559 Sleeve, Coupling   (Replaces: 2315559) In-Stock Immediately $ 73.21

100 2315954 Ice Container (complete) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KSRG25FKST18
