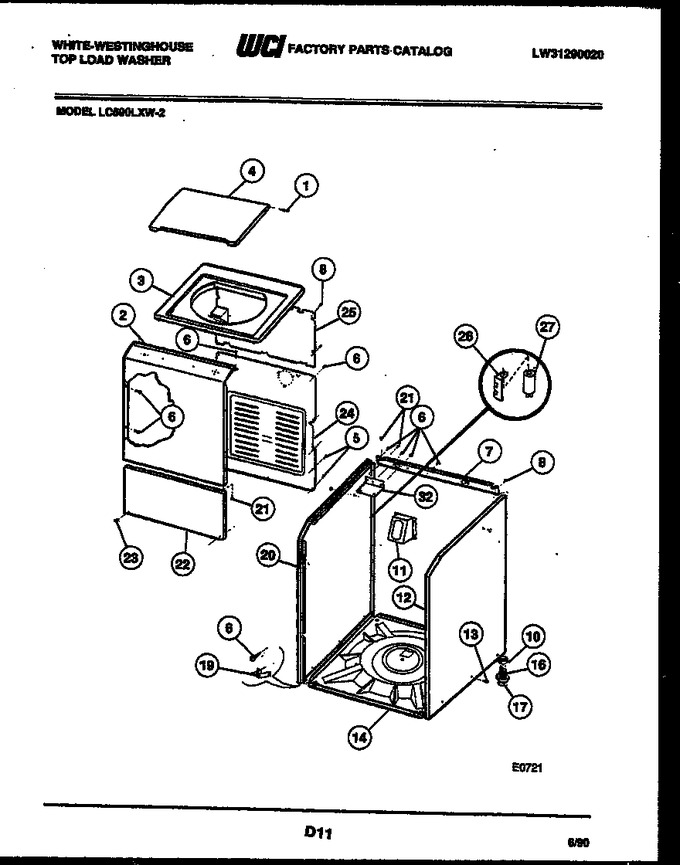

02 - Cabinet Parts
03 - Console And Control Parts
04 - Drain Recirculate Parts
05 - Tubs And Water Inlet
06 - Transmission Parts
07 - Portable Washer Components
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3161236 | Screw (2) |
|
- | |||||
| 2 | 3205915 | Control Panel (almond) |
|
- | |||||
| 3 | 3205917 | Top Panel (almond) |
|
- | |||||
| 4 | 3200863 | Lid (almond) |
|
- | |||||
| 5 | 3015671 | Screw (8) |
|
- | |||||
| 6 | 3015671 | Screw (13) |
|
- | |||||
| 7 | 08027553 | Support-rear Cabinet |
|
- | |||||
| 8 | F132144-000 | Screw (6) |
|
- | |||||
| 10 | 08027554 | Spacer-leveling Leg |
|
- | |||||
| 11 | 3205918 | Bracket-hose Storage |
|
- | |||||
| 12 | 3205920 | Panel Rh (white) |
|
- | |||||
| 12 | 3205921 | Panel Rh (almond) |
|
- | |||||
| 13 | F066234-000 | Screw ( 6 ) |
|
- | |||||
| 14 | F141072-126 | Cabinet Base |
|
- | |||||
| 16 | 3937004 | Leveling Leg Pkg. (consists Of Leveling Leg, Cushion & S |
|
- | |||||
| 17 | 3004083 | Leg Cushion (part Of Ref. 16, But May Be Ordered Separat |
|
- | |||||
| 19 | 08027560 | Bracket |
|
- | |||||
| 20 | 3205923 | Panel Lh (almond) |
|
- | |||||
| 21 | 3015671 | Screw (4) |
|
- | |||||
| 22 | F138855-039 | Panel-access (almond) |
|
- | |||||
| 23 | 08008447 | Screw (2) |
|
- | |||||
| 24 | 3205924 | Rear Panel-lower |
|
- | |||||
| 25 | 3205926 | Rear Panel-upper |
|
- | |||||
| 26 | 3161252 | Bracket-capacitor |
|
- | |||||
| 27 | 08014903 | Capacitor |
|
- | |||||
| 32 | 3205928 | Bracket-water Valve |
|
- | |||||
| *29374 | 3205919 | Hose Restraint |
|
- | |||||
| 6A | 08004660 | Screw (2) |
|
- | |||||
| 8A | 08004660 | Screw |
|
- |
