02 - Cabinet Parts


03 - Console And Control Parts


04 - Drain Recirculate Parts


05 - Tubs And Water Inlet


06 - Transmission Parts


07 - Portable Washer Components

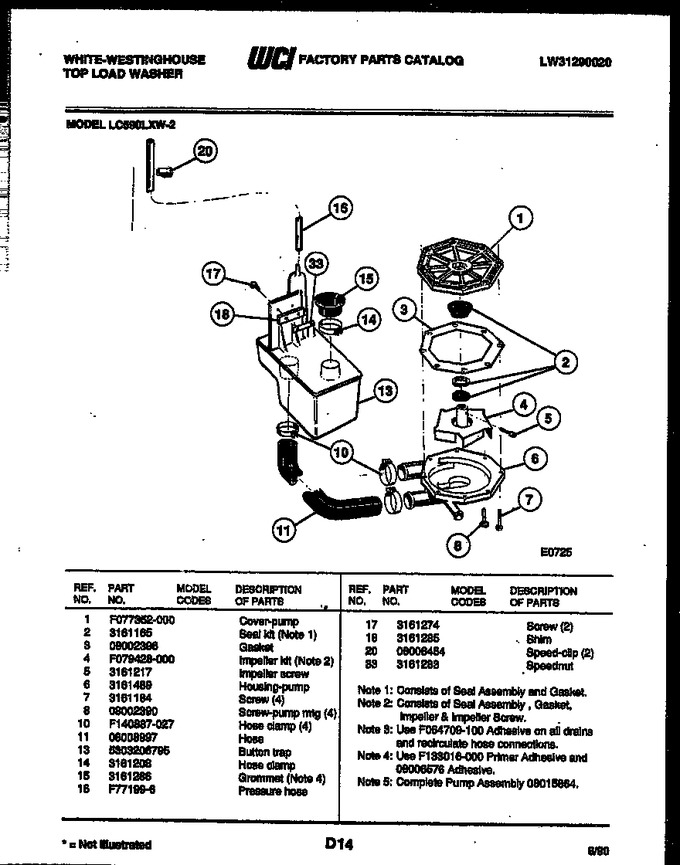

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	F077352-000		Cover, Pump		Appelez-nous	-
2	3161165		Seal Kit (consists Of Seal Assembly And Gasket)		Appelez-nous	-
3	08002396		Gasket		Appelez-nous	-
4	F079428-000		Impeller Kit (consists Of Seal Assembly, Gasket, Impelle		Appelez-nous	-
5	3161217		Impeller Screw		Appelez-nous	-
6	3161489		Housing-pump		Appelez-nous	-
7	3161184		Screw (4)		Appelez-nous	-
8	08002390		Screw - Pump Mtg (4)		Appelez-nous	-
10	F140887-027		Hose Clamp (4)		Appelez-nous	-
11	08008997		Hose		Appelez-nous	-
13	5303206795		Button Trap		Appelez-nous	-
14	3161208		Hose Clamp		Appelez-nous	-
15	3161286		Grommet (use F133016-000 Primer Adhesive And 08006576 Ad		Appelez-nous	-
16	F77199-6		Pressure Hose		Appelez-nous	-
17	3161274		Screw (2)		Appelez-nous	-
18	3161285		Shim		Appelez-nous	-
20	08008454		Speed-clip (2)		Appelez-nous	-
33	3161283		Speednut		Appelez-nous	-
