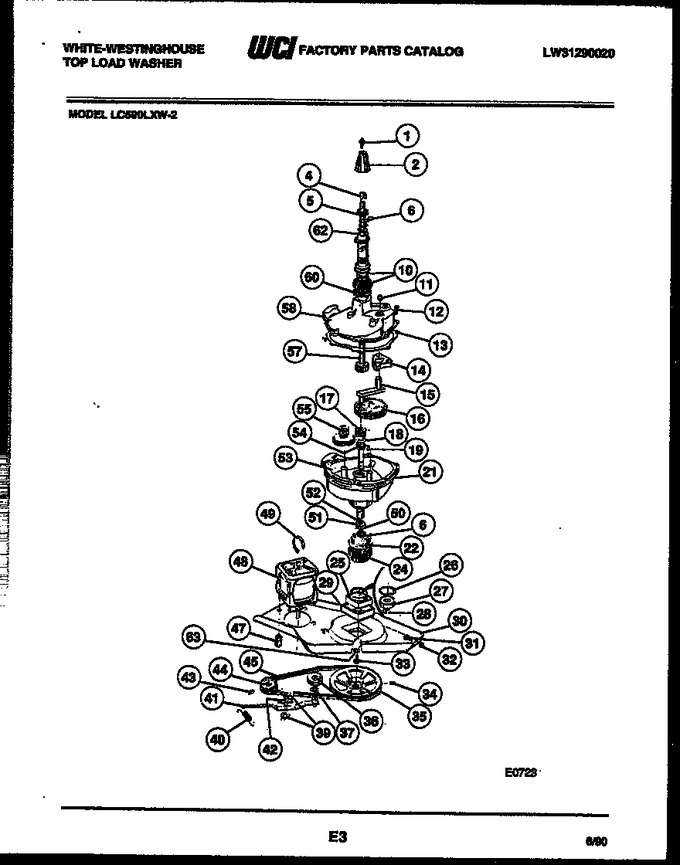

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3161221		Stud Bolt		Appelez-nous	-
2	08014904		Drive Lug		Appelez-nous	-
4	08014904		Drive Lug		Appelez-nous	-
5	3161307		Seal-upper Lip		Appelez-nous	-
6	3161223		Snap Ring (2)		Appelez-nous	-
10	08950197		Seal Kit		Appelez-nous	-
11	3161224		Pipe Plug		Appelez-nous	-
12	08002804		Screw (6)		Appelez-nous	-
13	08015778		Gasket		Appelez-nous	-
14	08011268		Sector Gear		Appelez-nous	-
15	3161169		Rod-connecting		Appelez-nous	-
16	08015496		Crank Gear		Appelez-nous	-
17	08014905		Lower Shaft		Appelez-nous	-
18	3161226		Thrust Washer		Appelez-nous	-
19	3161227		Dowel Pin (2)		Appelez-nous	-
21	F140586-000		Lower Housing Assy		Appelez-nous	-
22	08027536		Bearing Hag. Pkg. (consists Of Ref.s 22, 25, 26, 27, 28		Appelez-nous	-
24	3161182		Sleeve-clutch Coil		Appelez-nous	-
25	08950058		Bearing Hag. Pkg. (consists Of Ref.s 22, 25, 26, 27, 28		Appelez-nous	-
26	08950058		Bearing Hag. Pkg. (consists Of Ref.s 22, 25, 26, 27, 28		Appelez-nous	-
27	08950058		Bearing Hag. Pkg. (consists Of Ref.s 22, 25, 26, 27, 28		Appelez-nous	-
28	08015536		Snap Ring		Appelez-nous	-
29	F077009-100		Cushion		Appelez-nous	-
30	08002472		Support Plate		Appelez-nous	-
31	3161211		Screw (3)		Appelez-nous	-
32	3161212		Locknut (3)		Appelez-nous	-
33	08027582		Screw (2)		Appelez-nous	-
34	3161456		Set Screw		Appelez-nous	-
35	3937008		Transmission Pulley		Appelez-nous	-
36	3161159		V-pulley		Appelez-nous	-
37	3161306		Spring Washer		Appelez-nous	-
39	08027535		Bushing (2)		Appelez-nous	-
40	F078914-000		Spring		Appelez-nous	-
41	3937001		Idler Arm & Shaft Assy		Appelez-nous	-
42	3161303		Spacer		Appelez-nous	-
43	F132861-000		Set Screw		Appelez-nous	-
44	08006686		Motor Pulley		Appelez-nous	-
45	3161152		V-belt		Appelez-nous	-
47	3161303		Spacer (3)		Appelez-nous	-
48	08015502		Motor		Appelez-nous	-
49	3161300		Harness Tie		Appelez-nous	-
50	3351064		Spacer Washer		Appelez-nous	-
51	3161226		Thrust Washer		Appelez-nous	-
52	3161173		Seal-lower Lip		Appelez-nous	-
53	5303208460		Transmission Oil (1 Qt)		Appelez-nous	-
54	3161174		Small L.g.s. Spring		Appelez-nous	-
55	3161175		Idler Gear		Appelez-nous	-
57	08014910		Agitator Shaft Assy		Appelez-nous	-
58	F140588-000		Upper Housing Assy		Appelez-nous	-
60	3161231		Slinger		Appelez-nous	-
62	3161232		Thrust Washer		Appelez-nous	-
63	5303207426		Spacer - Rubber				$ 9.21
*29393	5303208459		Transmission-complete		Appelez-nous	-
33A	08002467		Rubber Spacer (2)		Appelez-nous	-
48A	08014888		Motor Switch (non-illustrated)		Appelez-nous	-
