02 - Cabinet Parts


03 - Console And Control Parts


04 - Drain Recirculate Parts


05 - Tubs And Water Inlet


06 - Transmission Parts


07 - Portable Washer Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204664		Hose Assembly		Appelez-nous	-
2	F132503-200		Kit, Hose Fit Hardware		Appelez-nous	-
3	08027586		Front Casters Assy (2)		Appelez-nous	-
4	F064337-000		Screw (4)		Appelez-nous	-
5	F141071-000		Pedal, Release/catch		Appelez-nous	-
6	F141076-000		Speednut (2)		Appelez-nous	-
7	Q000199049		Shoulder Screw (2)		Appelez-nous	-
8	F141066-000		Spring-retractable		Appelez-nous	-
9	F141060-000		Rolled Spring Pin		Appelez-nous	-
11	F141062-000		Screw		Appelez-nous	-
12	F141064-000		Bracket		Appelez-nous	-
13	F141067-100		Pedal, Caster		Appelez-nous	-
14	08027595		Pedal-extension		Appelez-nous	-
15	F141063-000		Screw (4)		Appelez-nous	-
16	08027597		Caster Assembly		Appelez-nous	-
17	3161306		Spring Washer		Appelez-nous	-
18	08027582		Washer (2)		Appelez-nous	-
19	08001638		Screw (2)		Appelez-nous	-
20	F141233-000		Shield		Appelez-nous	-
21	F141234-000		Clip		Appelez-nous	-
1A	3018542		Clamp (non-illustrated)		Appelez-nous	-
1A	3161301		Clamp (non-illustrated)		Appelez-nous	-
1B	08015500		Screw (2) (non-illustrated)		Appelez-nous	-
1C	30056492		Speed Nut (2) (non-illustrated)		Appelez-nous	-
4A	3015671		Screw (2)		Appelez-nous	-

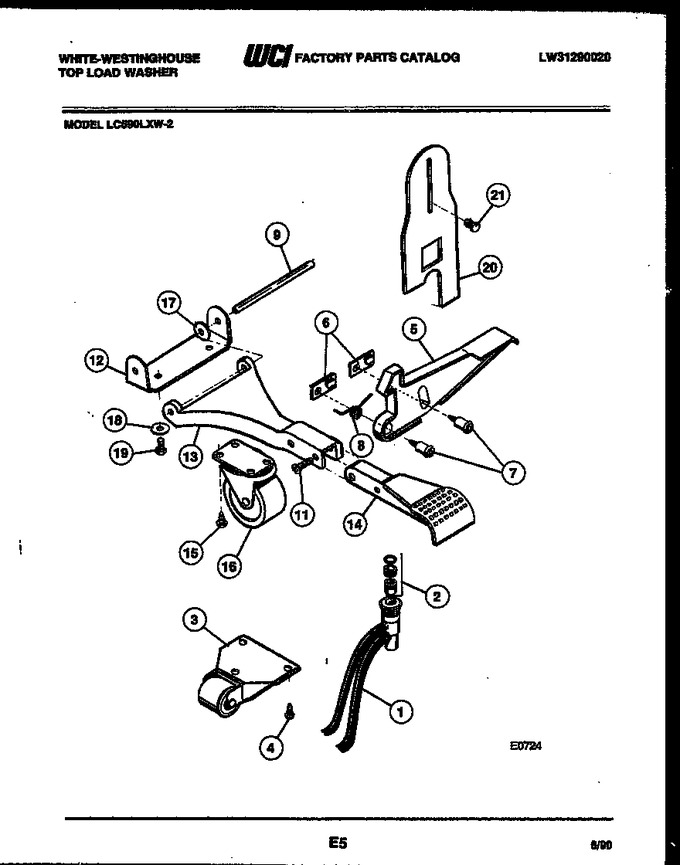

    View Diagram in Separate Window       Print Part List
