1	F142025-000		Splash Tub Cover		Appelez-nous	-
2	3161121		Seal		Appelez-nous	-
3	3161199		Speed Clip (8)		Appelez-nous	-
4	08027519		Screw (5)		Appelez-nous	-
7	3161486		Spin Tub Assy (consists Of Spin Tub With Spin Tub Cover		Appelez-nous	-
8	08027517		Screw (2)		Appelez-nous	-
9	08001923		Lockplate		Appelez-nous	-
10	08014908		Trunnion		Appelez-nous	-
11	3161127		Splash Tub & Bearing Assy		Appelez-nous	-
12	08027536		Tub Bearing Assy (consists Of Tub Bearing Assy & Washer.		Appelez-nous	-
15	08006573		Spring-horizontal (short)		Appelez-nous	-
16	F130789-000		Snubber Ring		Appelez-nous	-
17	3161284		Shipping Screw		Appelez-nous	-
18	3161202		Shipping Block		Appelez-nous	-
19	3161203		Expansion Nut		Appelez-nous	-
20	3161131		Spring-vertical-short		Appelez-nous	-
21	3161485		Agitator		Appelez-nous	-
22	3161132		Leg & Dome Assy		Appelez-nous	-
23	F073565-000		Gasket		Appelez-nous	-
24	3161122		Agitator Cap		Appelez-nous	-
25	3161204		Keps Nut (6)		Appelez-nous	-
26	3161205		Screw (6)		Appelez-nous	-
27	3161133		Spring-vertical (long 2)		Appelez-nous	-
29	3161207		Hose Clamp		Appelez-nous	-
30	3205937		Hose-water Valve-inlet		Appelez-nous	-
31	3161206		Hose Clamp		Appelez-nous	-
34	08027515		Check Valve		Appelez-nous	-
37	08002401		Thrust Water		Appelez-nous	-
38	3161134		Plate-leg Bolts (3)		Appelez-nous	-
40	F139128000		Motor Shield (consists Of Spin Tub With Spin Tub Cover I		Appelez-nous	-
44	08006564		Spring Horizontal (long)		Appelez-nous	-

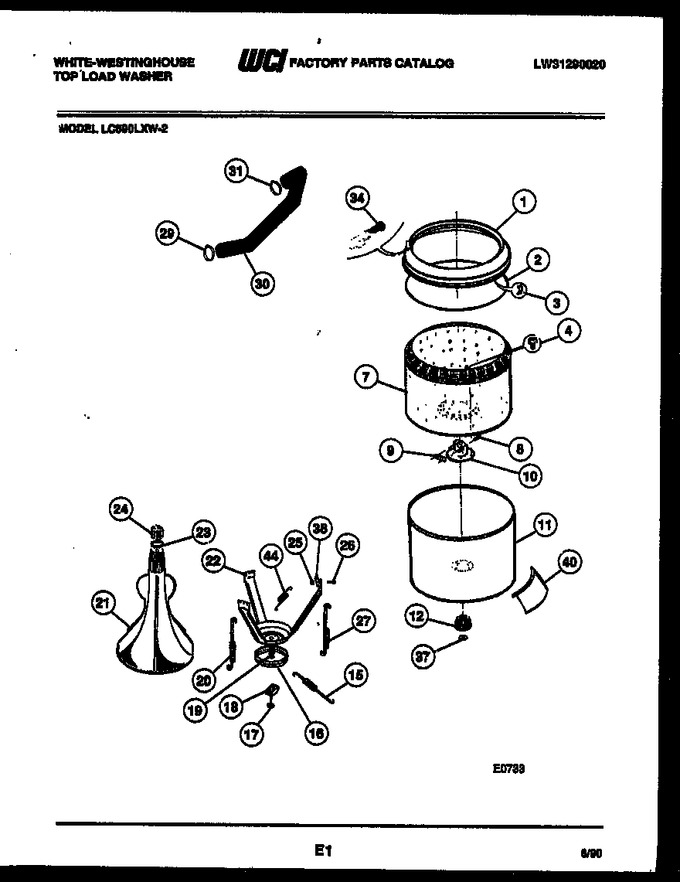

    View Diagram in Separate Window       Print Part List
