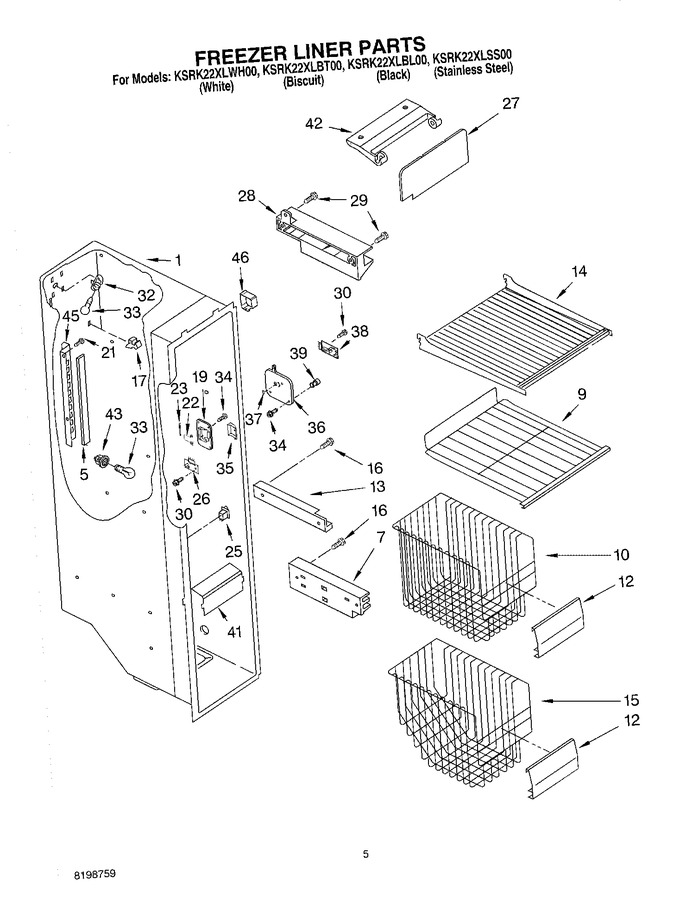

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Seviceable Part) |
|
- | |||||
| 5 | 2216957 | Gasket |
|
- | |||||
| 7 | 2223706 | Track, Basket-dual (right) |
|
- | |||||
| 7 | 2223707 | Track, Basket-dual (left) |
|
- | |||||
| 9 | 2211743 | Shelf, Slide Out Upper |
|
- | |||||
| 10 | 2223582 | Basket, Tall |
|
- | |||||
| 12 | 2171768 | Basket, Front |
|
- | |||||
| 13 | 2261448 | Shelf Track (left Side) |
|
$ 46.07 | |||||
| 13 | 2261449 | Shelf Track (right Side) |
|
$ 46.07 | |||||
| 14 | 2212343 | Shelf |
|
- | |||||
| 15 | 2223278 | Basket, Slope |
|
- | |||||
| 16 | W10759522 | Screw (Replaces: 486298) |
|
$ 6.98 | |||||
| 17 | 2215823 | Clip, Air Duct (Replaces: 842534) |
|
$ 9.38 | |||||
| 19 | WP2198587 | Cover, Emitter (Replaces: 2198587) |
|
$ 95.00 | |||||
| 21 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.01 | ||||
| 22 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 78.37 | |||||
| 23 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 15.98 | |||||
| 25 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 34.36 | |||||
| 26 | W11629974 | P.c. Board Emitter (Replaces: 2220398) |
|
Immediately | $ 360.96 | ||||
| 27 | W10180062 | Cover, Ice Maker (Replaces: 2212319) |
|
$ 65.30 | |||||
| 28 | 2212321 | Slide, Ice Maker |
|
$ 67.14 | |||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 30 | 2006254 | Screw (Replaces: 489214) |
|
$ 11.82 | |||||
| 32 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 33 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 34 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 8.86 | |||||
| 35 | WP2198633 | Flipper (Replaces: 2198633) |
|
Immediately | $ 43.44 | ||||
| 36 | 2198588 | Cover, Receiver |
|
- | |||||
| 37 | 2315398 | Slide, Ice Maker Shut Off (Replaces: 2198637) |
|
$ 9.81 | |||||
| 38 | W11629974 | P.c. Board, Receiver (Replaces: 2255114) |
|
Immediately | $ 360.96 | ||||
| 39 | WP2198643 | Lens (Replaces: 2198643) |
|
$ 7.36 | |||||
| 41 | 2212376 | Light Lens |
|
$ 82.06 | |||||
| 42 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 6.47 | |||||
| 43 | WPW10119935 | Socket, Light (Replaces: 2155597) |
|
$ 90.99 | |||||
| 45 | 2212315 | Ladder (left Side) |
|
- | |||||
| 45 | 2212316 | Ladder (right Side) |
|
- | |||||
| 46 | 2219878 | Shield, Wiring |
|
- |
