Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Housing, Dispenser (not Serviced) Appelez-nous -
2 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

3 WP2194719 Retainer, Levers   (Replaces: 2194719) In-Stock Immediately $ 10.59

4 WPW10224328 Spring, Torsion   (Replaces: 2180209) Special Order $ 74.92

5 WP2196195 Pin   (Replaces: 2196195) Special Order $ 13.12

6 WP2180353 Door, Ice   (Replaces: 2180352) In-Stock Immediately $ 22.22

7 2206423 Door Mechanism Assembly Appelez-nous -
8 2205686 Mechanism Delay Appelez-nous -
9 WP2206671B Grille, Overflow (black)   (Replaces: 2206671B) Special Order $ 62.15

9 2206671T Grille, Overflow (biscuit) Special Order $ 27.69

9 WP2206671W Grille, Overflow (white)   (Replaces: 2206671W) Special Order $ 61.86

10 8201537 Water Fitting Assembly (includes Water Tube)   (Replaces: 2209718) Special Order $ 120.72

11 2180261 Lever, Ice Dispenser (black) Appelez-nous -
11 2186850 Lever, Ice Dispenser (biscuit) Appelez-nous -
11 2180259 Lever, Ice Dispenser (white) Special Order $ 42.12

12 WP2180224 Guide, Ice   (Replaces: 2180224) In-Stock Immediately $ 24.87

13 2180200 Lamp Holder Special Order $ 88.79

14 WP2162361 Switch (2)   (Replaces: 2162361) In-Stock Immediately $ 24.61

15 WP2180226 Bracket, Control   (Replaces: 2183771) In-Stock Immediately $ 21.95

16 WP22002263 Light Bulb   (Replaces: 3406124) In-Stock Immediately $ 12.29

17 WPW10152859 Lever, Water Dispenser (black)   (Replaces: 2180270) In-Stock Immediately $ 88.13

17 WPW10152858 Lever, Water Dispenser (white)   (Replaces: 2180268) In-Stock Immediately $ 94.14

17 WPW10152858 Lever, Water Dispenser (biscuit)   (Replaces: 2186852) In-Stock Immediately $ 94.14

20 2187406 Wire Assembly Special Order $ 108.57

22 WP3400906 Screw   (Replaces: 489000) Special Order $ 7.06

23 2207349T Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit) Appelez-nous -
23 2207349B Front Cover Assembly (includes Items 18, 19, 20 & 21) (black) Appelez-nous -
23 2207349W Front Cover Assembly (includes Items 18, 19, 20 & 21) (white) Appelez-nous -
25 WP2195051 Strain Relief   (Replaces: 2195051) Special Order $ 10.50


    View Diagram in Separate Window     Print Icon   Print Part List

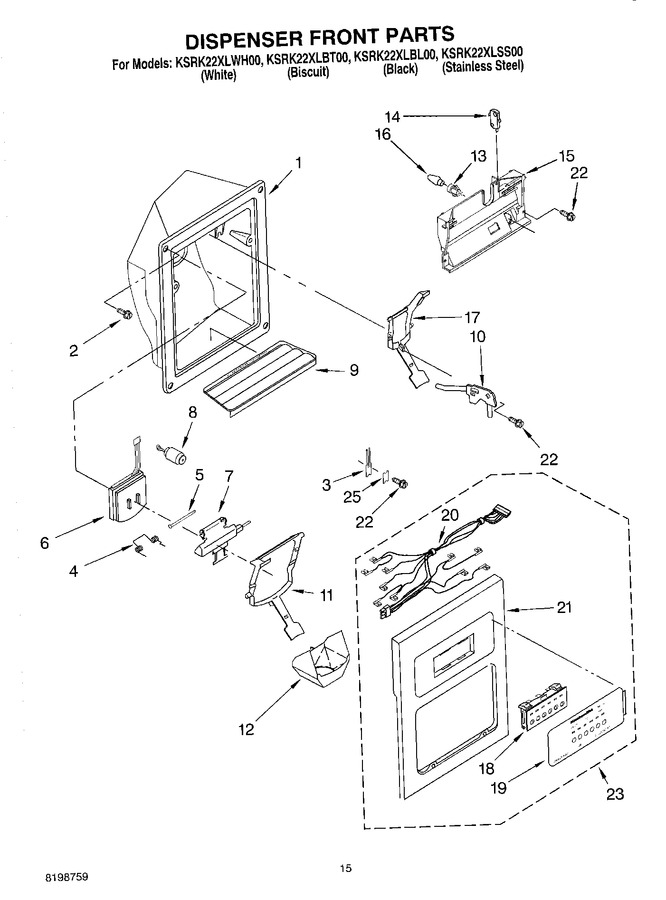

Diagram for KSRK22XLWH00
