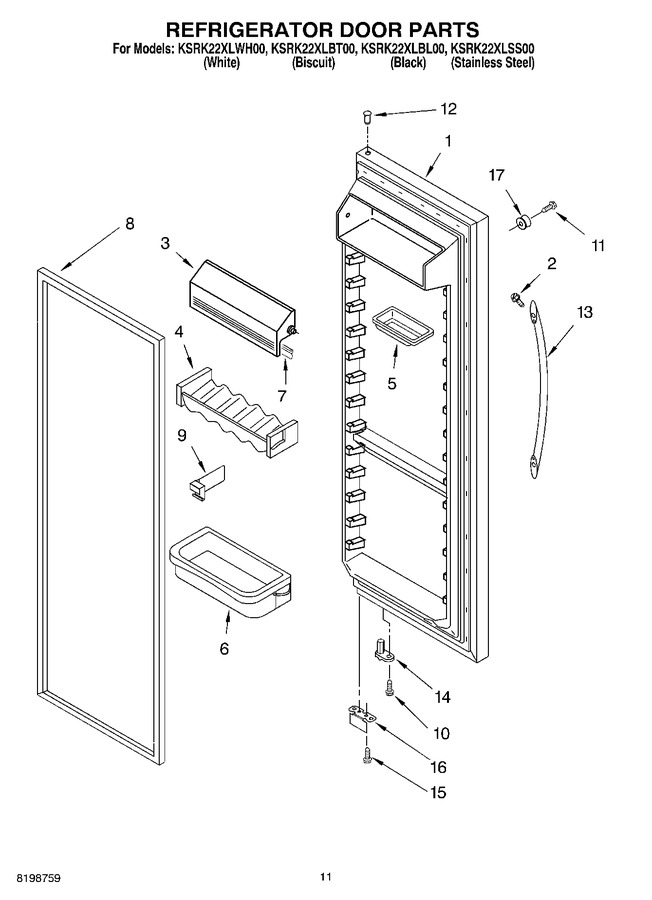

07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219829T		Refrigerator Door (includes Item 8) (biscuit)		Appelez-nous	-
1	2219829B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
1	2219829S		Refrigerator Door (includes Item 8) (stainless Steel)		Appelez-nous	-
1	2219829W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
2	98654		Screw		Appelez-nous	-
3	2218122		Door, Compartment		Appelez-nous	-
4	2193409		Beverage Holder				$ 48.13
5	2165792		Dish, Butter		Appelez-nous	-
6	2171063		Shelf Bin (3)		Appelez-nous	-
7	2159124		Gasket		Appelez-nous	-
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 285.59
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 287.64
9	2195497		Divider, Bin		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
11	WP488163		Screw   (Replaces: 488208)				$ 6.79
12	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 6.98
13	2188635W		Handle (includes 2) (white)		Appelez-nous	-
13	2188635T		Handle (includes 2) (biscuit)		Appelez-nous	-
13	2188635S		Handle (includes 2) (stainless Steel)		Appelez-nous	-
13	2188635B		Handle (includes 2) (black)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 5.75
15	WP489483		Screw   (Replaces: 489420)				$ 9.78
16	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 36.03
16	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 36.03
17	2203690		Stud, Handle		Appelez-nous	-
