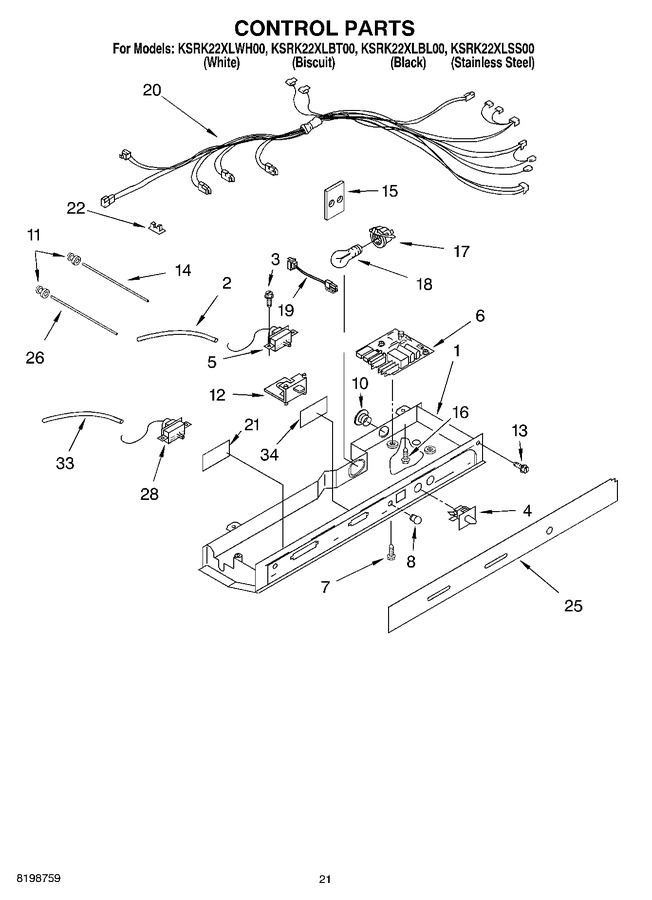

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2216588 | Control Box |
|
- | |||||
| 2 | WP2196003 | Tube Barrier, Thermostat (rc) (Replaces: 2182150) |
|
$ 7.16 | |||||
| 3 | 2006254 | Screw (3) (Replaces: 489214) |
|
$ 11.82 | |||||
| 4 | WP2149705 | Light Switch (Replaces: 2149705) |
|
Immediately | $ 36.36 | ||||
| 5 | WP2161460 | Thermostat (r.c.) (Replaces: 2161460) |
|
Immediately | $ 223.80 | ||||
| 6 | WPW10366605 | Adaptive Defrost Control (Replaces: 2213489) |
|
Immediately | $ 248.65 | ||||
| 7 | 489392 | Screw (2) (Replaces: 489398) |
|
$ 12.02 | |||||
| 8 | 2200096 | Cover, Light Lens |
|
$ 64.10 | |||||
| 10 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 11 | 2172906 | Grommet, Light Bar |
|
- | |||||
| 12 | 2161466 | Slide, Thermostat |
|
$ 19.10 | |||||
| 13 | WPW10141645 | Screw (2) (Replaces: 489084) |
|
$ 6.90 | |||||
| 14 | 2179920 | Light, Bar |
|
$ 37.08 | |||||
| 15 | 2172931 | Heat Shield |
|
$ 63.34 | |||||
| 16 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 6.91 | |||||
| 17 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 18 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 19 | W10853646 | Harness, Indicator Light (Replaces: 2213462) |
|
$ 112.11 | |||||
| 20 | 2216587 | Harness, Control Box |
|
- | |||||
| 21 | 2172941 | Window |
|
- | |||||
| 22 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 25 | 2219879 | Escutcheon, Control Box |
|
- | |||||
| 26 | 2179921 | Light Bar |
|
- | |||||
| 28 | WP2182770 | Thermostat (fc) (Replaces: 2161461) |
|
Immediately | $ 203.67 | ||||
| 33 | WP2196003 | Tube Barrier, Thermostat (fc) (Replaces: 2196003) |
|
$ 7.16 | |||||
| 34 | 2172940 | Window |
|
- | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 350956 | Enamel, Almond (12 Oz. Spray Can) |
|
$ 46.30 | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 80.69 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
Immediately | $ 51.34 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 23.81 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 73.92 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``) |
|
$ 208.40 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 10.96 | |||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 70.61 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.26 | ||||||
| 2212303 | Ice Container Assembly |
|
- | ||||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| N/A | Torx Screw Wrench |
|
- | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 156.56 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 208.40 | ||||||
| 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 208.40 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 |
