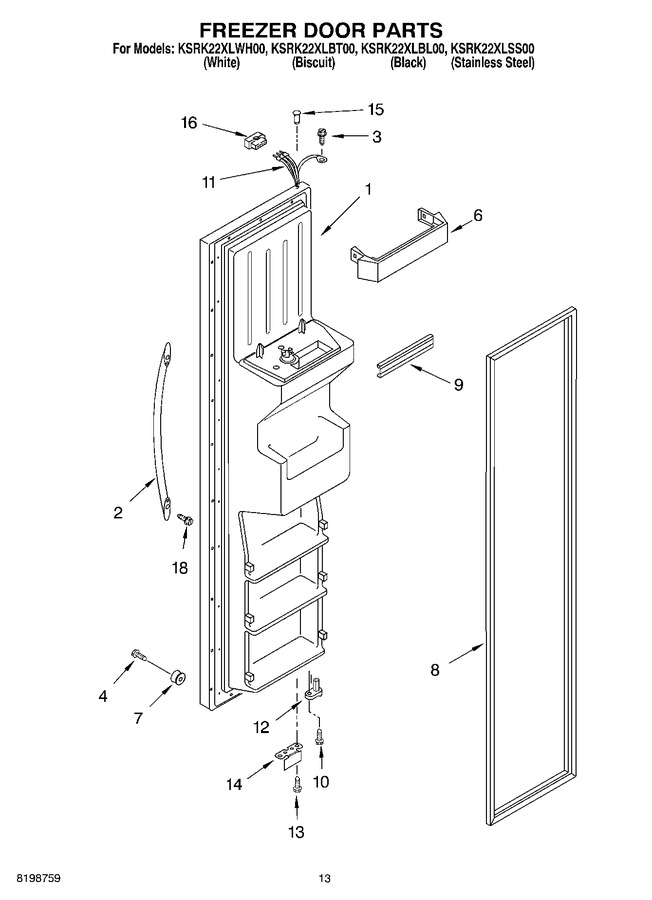

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2255406T | Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 1 | 2255406B | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | 2207348S | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel) |
|
- | |||||
| 1 | 2255406W | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | 2188635W | Handle (includes 18) (white) |
|
- | |||||
| 2 | 2188635T | Handle (includes 18) (biscuit) |
|
- | |||||
| 2 | 2188635B | Handle (includes 18) (black) |
|
- | |||||
| 2 | 2188635S | Handle (includes 18) (stainless Steel) |
|
- | |||||
| 3 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 4 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 6 | 2171071 | Trivet, Shelf (4) |
|
- | |||||
| 7 | 2203690 | Stud, Handle |
|
- | |||||
| 8 | 2159080 | Door Gasket, Magnetic (black) (Replaces: 2221312) |
|
$ 279.35 | |||||
| 8 | 2159072 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221301) |
|
$ 277.37 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2212375) |
|
Immediately | $ 20.80 | ||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.04 | |||||
| 11 | 2207213 | Wire Harness |
|
- | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 5.75 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 | |||||
| 14 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 36.03 | |||||
| 14 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 36.03 | |||||
| 15 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 6.98 | |||||
| 16 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 21.29 | |||||
| 18 | 98654 | Screw |
|
- |
